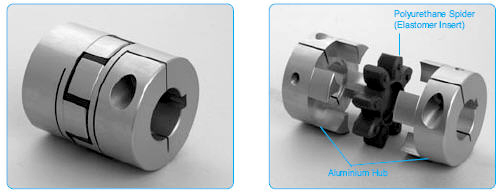

 ¢º Jaw Coupling


    square03_green.gif Feature


- Backlash-zero coupling
- Exellently endurable and rigid against high torsion
- Maintenance and repair are unnecessary-lubrication is
   also
unrequired
- An elastic spiter reduces the impact of a pit load



     square03_green.gif Application examples


- Electric motor
- Position control-positioning
- Robot system
- Direct drive of boring and grinding machines
- Machining centers
- Medical equipments
- Servomotors
- X-Y and X-Y-Z axial driving

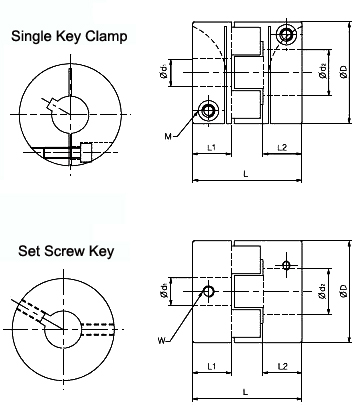

Product No.

D

d1

d2

L

L1

L2

M

W

Wrench
Torque
(N.m)

KJC-14SC

14

3

5

21

7

7

M2

M3

0.7

KJC-20SC

20

5

8

29.2

10

10

M2.5

M4

1.8

KJC-30SC

30

7

12

33.6

12

12

M4

M5

4

KJC-40SC

40

10

16

54

20

20

M5

M6

4.9

KJC-55SC

55

15

25

66.4

25

25

M6

M6

17

KJC-60SC

65

15

25

78

30

30

M8

M8

46

KJC-80SC

80

28

38

91.4

35

35

M8

M8

95

KJC-95SC

95

40

45

104

40

40

M10

M10

130

Product No.

Max. Rotationa
Frequencyl

(min
–1)

Moment
of Inertia

(kg.m²

Static Torsional
Stiffness

(N.m/rad)

Errors of
Eccentricity

(mm)

Errors of
Angularity

(°)

KJC-14SC

10,000

2.1x10

8

0.15

1.0

KJC-20SC

10,000

1.0x10

16

0.2

1.0

KJC-30SC

10,000

5.9x10

46

0.2

1.0

KJC-40SC

10,000

4.0x10

380

0.2

1.0

KJC-55SC

10,000

1.7x10

1,400

0.2

1.0

KJC-60SC

9,000

3.9x10

2,800

0.2

1.0

KJC-80SC

7,000

1.1x10

3,200

0.2

1.0

KJC-95SC

6,000

2.4x10

3,600

0.2

1.0
