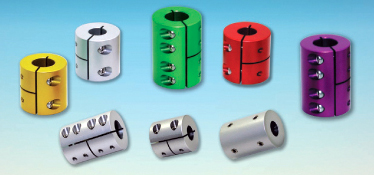

 ¢º Miniature Rigide Coupling




    The compact accurate RIGID COUPLING of SI is one-piece structure.
    RIGID COUPLING can be used as joint to connect with two shafts. The major characteristic of RIGID COUPLING is that it provides perfect efficiency at any condition that is low and high speed and high torque but that is not flexible. RIGID COUPLING is not accepted amplitude eccentricity and misalignment between one shat and the other shaft. Therefore please arrange the shaft perfectly for protection of coupling and machinery.

    square03_green.gif Features

    • Zero backlash.
    • Maintenance free and excellent resistance against oil
      and chemicals.
    • Light weight, extremely low inertia.







Model

DIMENSION(±0.3)

Weight
(gr)

Moment
of Inertia
kgf xm
2

Rated
Torque
N.m

Max.
Torque
N.m

Max.
RPM
(min)

Wrench
Torque

Standard Inner dia
d1, d2

D

L1L2

L

E

F1

F2

M

SRG-16

16

10.3

22.6

2

5



3

10

3.7x10-7

0.3

0.6

22,000

0.7

3,4,5,6,

SRG-20

20

11

24

2

5.5



3

20

1.2x10-6

0.5

1

18,000

0.7

4,5,6,8,10

SRG-25

25

16.5

35

2

7



4

40

3.6x10-6

1

2

14,000

1.7

5,6,8,10,11,12

SRG-32

32

19

40

2

9



5

71

1.0x10-5

2

4

12,000

4

6,8,10,11,12,14,15

SRG-43

43

25

52

2

12



6

170

4.6x10-5

4.5

9

9,000

6

10 ~ 22

SRG-53

53

32

66

2

15.5



8

360

1.3x10-4

11

22

6,000

15

12 ~ 24

SRG-16C

16

7

16

2

3.7



2.6

8

3.0x10-7

0.3

0.6

9,500

1

3,4,5,6,

SRG-20C

20

9

20

2

4.6



2.6

15

8.7x10-7

0.5

1

7,000

1

4,5,6,8,10

SRG-25C

25

11.5

25

2

5.8



3

29

2.7x10-6

1

2

6,000

1.5

5,6,8,10,11,12

SRG-32C

32

15

32

2

7.6



4

50

7.1x10-6

2

4

4,700

2.5

6,8,10,11,12,14,15

SRG-43C

43

19.5

41

2

10



5

130

3.4x10-5

4.5

9

4,000

5

10 ~ 22

SRG-53C

53

24.5

51

2

12.5



6

260

9.8x10-5

11

22

3,000

9

12 ~24

SRGL-16C

16

10.3

22.6

2

3

5.4

2.6

10

3.4x10-7

0.4

0.8

9,000

1

3,4,5,6,

SRGL-20C

20

11

24

2

3.1

5.6

2.6

18

9.2x10-7

0.6

1.2

7,000

1

4,5,6,8,10

SRGL-25C

25

16.5

35

2

4.7

7.6

3

38

3.4x10-6

1.2

2.4

6,000

1.5

5,6,8,10,11,12

SRGL-32C

32

19

40

2

5.3

9.1

4

70

1.0x10-5

2.4

4.8

4,500

2.5

6,8,10,11,12,14,15

SRGL-43C

43

25

52

2

7

11.5

5

160

4.2x10-5

5

10

3,800

5

10 ~ 22

SRGL-53C

53

32

66

2

9

14.5

6

340

1.2x10-4

12

24

2,800

9

12 ~24
