 ¢º Kosa Rigid Coupling

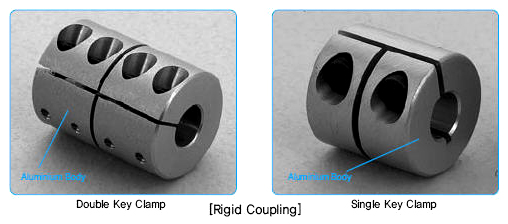

    The compact accurate RIGID COUPLING of SI is one-piece structure.
    RIGID COUPLING can be used as joint to connect with two shafts. The major characteristic of RIGID COUPLING is that it provides perfect efficiency at any condition that is low and high speed and high torque but that is not flexible. RIGID COUPLING is not accepted amplitude eccentricity and misalignment between one shat and the other shaft. Therefore please arrange the shaft perfectly for protection of coupling and machinery.

    square03_green.gif Features

    • Zero backlash.
    • Maintenance free and excellent resistance against oil
      and chemicals.
    • Light weight, extremely low inertia.

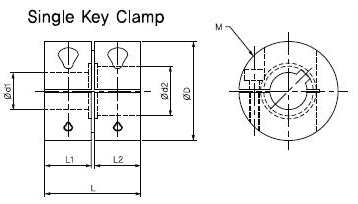

Model No.

DIMENSION(±0.3)

Moment
of Inertia
kgf xm
2

Rated
Torque
N.m

Max
RPM
(min)

Standard Inner dia
d1, d2

D

d1

d2

L

L1

L2

M

KRC-16SC

16

3

6

16

7.5

7.5

M2

9.1x10-7

0.3

15,000

3,4,5,6

KRC-25SC

25

5

10

20

9.5

9.5

M2.5

9.3x10-6

1

15,000

5,6,8,10

KRC-32SC

32

8

12

25

12

12

M4

2.8x10-6

2

15,000

8,10,11,12

KRC-40SC

40

12

16

32

15.5

15.5

M5

1.9x10-5

3

15,000

12,14,15,16

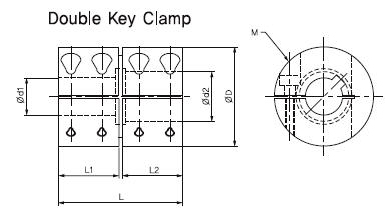

Model No.

DIMENSION(±0.3)

Moment
of Inertia
kgf xm
2

Rated
Torque
N.m

Max
RPM
(min)

Standard Inner dia
d1, d2

D

d1

d2

L

L1

L2

M

KRC-16DC

16

3

6

22

10.5

10.5

M2

9.1x10-7

0.3

15,000

3,4,5,6

KRC-25DC

20

5

10

24

11.5

11.5

M2.5

9.3x10-6

1

15,000

5,6,8,10

KRC-32DC

25

8

12

36

17.5

17.5

M4

2.8x10-6

2

15,000

8,10,11,12

KRC-40DC

32

12

16

40

19.5

19.5

M5

1.9x10-5

3

15,000

12,14,15,16
