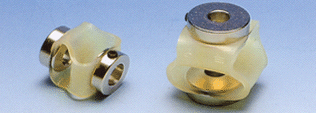

    FLEXIBLE COUPLING
    square03_green.gif Feature

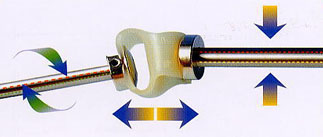

    • Absorb large parallel and angular displacement and end play
    • Abscrb shock and vibration
    • Non-grease, non-noise andlittle inertia








Product No.

DIMENSION(±0.3)

weight
(gr)

Max
RPM
(min)

Max
Torque
(kgf -cm)

Angle

Parallel
 (±mm)

End-play
(±mm)

Standard
shaft diameter
d1,  d2

A

B

C

SFC-29

29

28

18

19

3,000

3.5

10°

2

1.5

￠6~￠10

SFC-38

38

35

22.5

38

3,000

13.5

12.5°

2.5

2

￠6~￠12

      ※ Download CAD Files

Product No.

DIMENSION(±0.3)

weight
(gr)

Max
RPM
(min)

Max
Torque
(kgf cm)

Angle

Parallel
 (±mm)

End-play
(±mm)

Standard
shaft diameter
d1,  d2

A

B

C

SFC-48

48

50

26

60

3,000

18

15°

2.5

2

￠8~￠14

SFC-54

54

58

29.5

140

3,000

45

15°

3

2

￠10~￠16

      ※ Download CAD Files

    ※ Please specify the diameters of both shaft endsin the order form.
