 ¢º Oldham Coupling

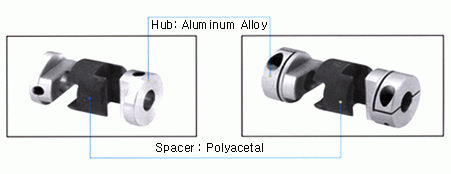

 square03_green.gif The exinguishingfeature of OLDHAM COUPLING is to provide an exceptional flexibility and awide range of parallel andmisalignment capabilty
Since there is no force of restitution,
the load to bearingis little.
Please do not contuse with a jaw couplingwhich operates in different theory.Torqueis transferred through disc which is capable of damping misalignment error andmechanical intermittence.
Replacement ofdisc is easily done without dissembling hub from the shaft.









 square03_green.gif Feature





  • Flexible movement - little bearingload
  • High twisting endurance characteristics
  • Electrical insulation
  • Extensive operation over parallel, angular and misalignment movement
  • Free from electro-magnetism
  • Less inertia
  • Easy assembling





      SOH - ¡à¡à

        SOH - ¡à¡àC

Product No.

DIMENSION(±0.3)

Bolt
M

weight
(gr)

Max
Torque
kgf-cm

Basic
Torque
kgf-cm

Twisting
hardness
kgf-cm

Max
parallel

Max
angle

Max
RPM
(min)

Standard
Shaft diameter
d1, d2

D

L1

L2

L3

SOH-16

16

18

8

8

M3

7

70.2

15

12.4

1.2

2°30

7,000

¡Ë3~¡Ë6.35

SOH-20

20

20

8.9

8.9

M4

14

130.0

30

20.2

1.8

2°30

5,900

¡Ë4~¡Ë8

SOH-25

25.5

25.5

11.6

11.6

M4X2

20

190.8

56

36.8

2.2

2°30

4,800

¡Ë5~¡Ë10

SOH-32

32

32

14.5

14.5

M4X2

48

378.0

86

162.8

2.8

2°30

4,000

¡Ë6~¡Ë14

SOH-43

43

52

24

24

M5X2

160

530.6

180

210.6

3.5

2°30

3,600

¡Ë8~¡Ë16

SOH-53

53

58

27

27

M5X2

252

742.2

260

319.4

4.5

2°30

3,100

¡Ë10~¡Ë25

SOH-57

57

77

36.5

36.5

M8X2

390

900.2

350

400.6

5.5

2°30

2,700

¡Ë15~¡Ë28

SOH-16C

16

23.6

10.7

10.7

M2.6

9

70.2

15

12.4

1.2

2°30

7,000

¡Ë3~¡Ë6

SOH-20C

20

25.5

11.6

11.6

M2.6

16

130.0

30

20.2

1.8

2°30

5,900

¡Ë4~¡Ë8

SOH-25C

25.5

32

14.8

14.8

M3

34

198.8

56

36.8

2.2

2°30

4,800

¡Ë5~¡Ë9.525

SOH-32C

32

45

21

21

M4

80

378.0

86

162.8

2.8

2°30

4,000

¡Ë6~¡Ë14

SOH-43C

43

52

24

24

M5

160

530.6

180

210.6

3.5

2°30

3,600

¡Ë8~¡Ë18

SOH-53C

53

58

27

27

M5

252

742.2

260

319.4

4.5

2°30

3,100

¡Ë10~¡Ë25

SOH-57C

57

77

36.5

36.5

M6

390

900.2

350

400.6

5.5

2°30

2,700

¡Ë15~¡Ë28

SOH-16S

16

21

10.7

8

M3

7.5

70.2

15

12.4

1.2

2°30

7,000



SOH-20S

20

22.8

11.6

8.9

M4

15.3

130.0

30

20.2

1.8

2°30

5,900



SOH-25S

25.5

28.8

14.8

11.6

M4X2

27

190.8

56

36.8

2.2

2°30

4,800



SOH-32S

32

38.5

21

14.5

M4X2

70

378.0

86

162.8

2.8

2°30

4,000



SOH-16SC

16

21

10.7

8

M3

7.5

70.2

15

12.4

1.2

2°30

7,000



SOH-20SC

20

22.8

11.6

8.9

M4

15.3

98.8

30

20.2

1.8

2°30

5,900



SOH-25SC

25.5

28.8

14.8

11.6

M4X2

27

130.0

56

36.8

2.2

2°30

4,800



SOH-32SC

32

38.5

21

14.5

M4X2

70

378.0

86

162.8

2.8

2°30

4,000



    ¡Ø Download CAD Files


    • x - y Position Table
    • Goodfor small size motor like AC Motor, DC Motor, Motor, Tacho Generator and so forth
    • Hydaulic dlstrlbution system, Optical System
    • Ventilation equipment, Environmental equipment, Encoder, Smail Pump
    • Ventilation equipment. Environmental equipment, Encoder, Small pump
    • Paper, Disc, Tape trensporting device




    • Cascade layoutshould be avoided and proper bearing supports are necessary
    • OLDHAM ccupling is not adequate forcouplign the moving shaft andnot in use with a pair
      •
