 ¢º SBG LM GUIDE FL (Heavy-load type)



These types, with four tapped holes
on the block, are suitable for easy
build-up from the upper and lower
direction. You don't need to
distinguish the block types
according to the direction of bolt
assembly. FLL is applied to ultra
heavy load application.

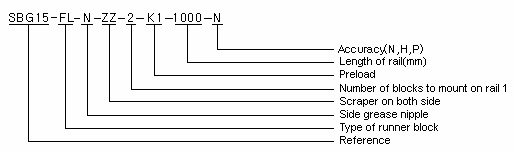

Model No.

External dimensions

LM Block dimensions

Height H

E

W2

Width
W

 Length
L

Mounting tab hole

L1

J1

K

T

 Grease nipple

B×J

M

S

Mounting
hole

T1

N

SBG 15 FL

24

2.65

16

47

58.8

38×30

M5

M4

38.8

4.4

21.35

7.2

ø3.5

4

5

SBG 20 FL

30

3.5

21.5

63

77.2

53×40

M6

M5

50.8

5.4

26.5

9

M6×0.75

7

9.8

SBG 25 FL

36

5

23.5

70

86.9

57×45

M8

M6

59.5

7.25

31

10

M6×0.75

6.5

9.8

SBG 30 FL

42

6.5

31

90

98

72×52

M10

M8

70.4

9.6

35.5

12

M6×0.75

8.5

10.7

SBG 35 FL

48

7.5

33

100

109.5

82×62

M10

M8

80.4

9.2

40.5

13

M6×0.75

9.5

10.7

SBG 45 FL

60

7.3

37.5

120

136

100×80

M12

M10

98

9

52.7

15

PT 1/8

10.5

11

SBG 55 FL

70

9.8

43.5

140

160

116×95

M14

M12

118

11.5

60.2

17

PT 1/8

12

11

SBG 65 FL

90

17.5

53.5

170

189

142×110

M16

M14

147

18.5

72.5

23

PT 1/8

15

11

LM-rail dimensions

Load capacity

Weight

Model No.

Width
W1

Height
H1

Pitch
F

d×D×h

g

Max
Lengths

Dynamic
C(kgf)

Stationary
C0(kgf)

Stationary moment(kgf.m)

Bearing
(kgf)

Rail
(kgf/m)

MRO

MPO

Mro

15

15

60

4.5×7.5×5.3

20

3,000

850

1370

7

5

5

0.18

1.45

SBG 15 FL

20

17.5

60

6×9.5×8.5

20

4,000

1450

2560

22

18

18

0.42

2.20

SBG 20 FL

23

21.8

60

7×11×9

20

4,000

2140

4000

36

32

31

0.58

3.10

SBG 25 FL

28

25

80

9×14×12

20

4,000

2980

5490

60

50

49

1.10

4.45

SBG 30 FL

34

29

80

9×14×12

20

4,000

3960

7010

96

75

73

1.57

6.40

SBG 35 FL

45

38

105

14×20×17

22.5

4,000

6290

11292

202

159

157

2.96

11.25

SBG 45 FL

53

45

120

16×23×20

30

4,000

9307

16012

344

274

270

4.49

15.25

SBG 55 FL

63

58.5

150

18×26×22

35

3,000

15100

24500

629

495

484

6.70

23.90

SBG 65 FL
