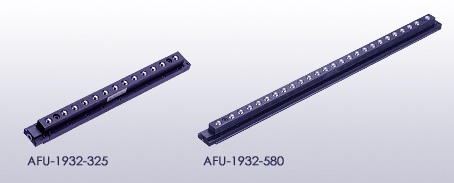

 ¢º Ball Transfer Unit : AFU-1932 Series


The above T-model, using single acting cylinders, lowers with the weight of the die placed on the ball tops.

T slot Model

Example:


ÀÌ¹Ì ¼³Ä¡µÈ T ȨÀ» È°¿ë£®°£´Ü ¼³Ä¡·Î Å« È¿°ú T±¸ »ðÀÔ Çü
°¢ Ȩ °¡°øÀ» ÇÒ ÇÊ¿ä¾øÀÌ £¬ÀÌ¹Ì ¼³Ä¡µÈ T Ȩ¿¡ »ðÀÔÇÏ°í »ç¿ëÇÒ ¼ö
ÀÖ½À´Ï´Ù£®lifter ±â´ÉÀÌ ¾ø´Â ±â°è¿¡ÀÇ ºÎ·Ïµµ ¿ëÀÌÇÕ´Ï´Ù






      Connection examples

        Example1: (connection of 2 FREEBEAR Units)
        A(dimension) = 16 + L1 + 2 + L1
        Example2:(connection of 3 FREEBEAR Units)
        A(dimension) = 16 + L1 +2 + L1 + 2 + L1
        Example3:(connection of 4 FREEBEAR Units)
        A(dimension) = 16 + L1 +2 + L1 + 2 + L1 + 2 + L1

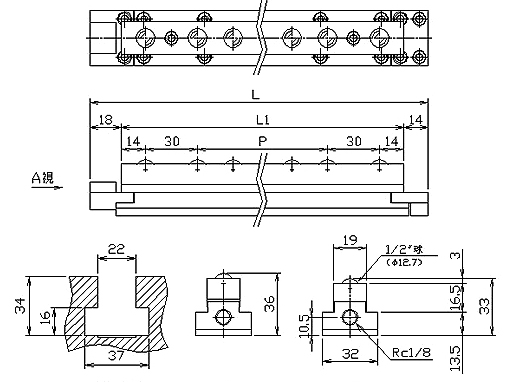

Model Dimensions (mm) weight
(kg)

°ø±â¾Ð°ú ºÎÇϴɷ°úÀÇ °ü°è (kgf)

L L1 P

»ç¿ë°ø±â¾Ð MPa(kgf/cm²)

0.40(4.1) 0.50(5.1) 0.60(6.1)

AFU-1932-325

325 293 10xP20.5=205 2.6 1.18(120.3) 1.57(160.1) 1.96(199.9)

AFU-1932-580

580 548 23xP20=460 4.8 2.36(240.7) 3.14(320.2) 3.92(399.7)

AFU-1932-680

680 648 28xP20=560 6.0 2.65(270.2) 3.53(360.0) 4.41(449.7)
