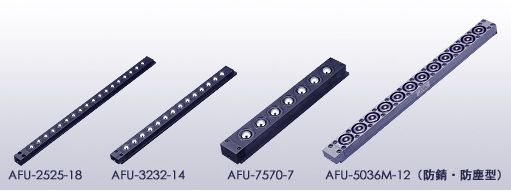

AFU-2525-18

 AFU-3232-14

  AFU-7570-7

 AFU-5036M-12

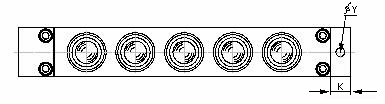

  Connection diagram

Connection examples

Example1: (connection of 2 Ball Transfer Units)
A(dimension) = L2 + 1 + L1 + 1 + L1 + L3
Example2:(connection of 3 Ball Transfer Units)
A(dimension) = L2 + 1 + L1 +1 + L1 + 1 + L1 + L3
Example3:(connection of 4 Ball Transfer Units)
A(dimension) = L2 + 1 + L1 +1 + L1 + 1 + L1 + 1 + L1 +L3

Model

Sguar
srot

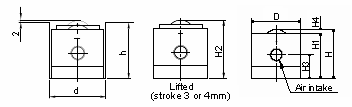

Dimensions (mm)

Weight
(kg)

공기압과 부하능력과의 관계 (kgf)

D

H

H1

H2

H3

H4

Stroke

L

L1

L2

L3

P

P1

P2

K

B

Y

Air in-take

프리 베이스 업 1개

AFU 1개

사용공기압
MPa(kgf/cm²)

사용공기압
MPa(kgf/cm²)

h

d

0.40
(4.1)

0.50
(5.1)

0.60
(6.1)

0.40
(4.1)

0.50
(5.1)

0.60
(6.1)

AFU-2525-18

26

27

25

25

22

28

11

3

3

520

472

35

12

17xP25=425

14

33

6

3/8"
(9.525)

6

Rc1/8

2.0

0.09
(9.2)

0.12
(12.3)

0.14
(14.3)

1.62
(165.2)

2.16
(220.3)

2.52
(257.0)

AFU-3232-14

34

34

32

32

28

36

18

4

4

487

446

25

15

13xP30=390

20

36

7

5/8"
(15.875)

9

Rc1/4

3.0

0.16
(16.3)

0.20
(20.4)

0.24
(24.5)

2.24
(228.4)

2.80
(285.5)

3.36
(342.6)

AFU-7570-7

72

77

75

70

62

74

24

8

592

535

36

20

6xP70=420

47.5

67.5

10

1 1/2"
(38.10)

19.4

1.06
(108.1)

1.33
(135.6)

1.60
(163.2)

7.42
(756.6)

9.31
(949.4)

11.2
(1142.1)

AFU-5036M-12

38

52

50

36

34

40

19

2

686

633

32

11xP50=550

33

50

3/4"
(19.05)

7.4

0.24
(24.5)

0.31
(31.6)

0.39
(39.8)

2.88
(293.7)

3.72
(379.3)

4.68
(477.2)
