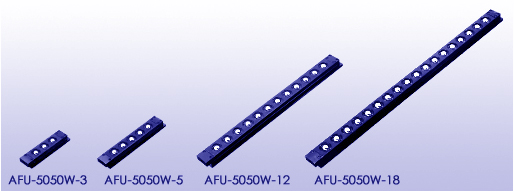

AFU-5050W-3

 AFU-5050W-5

  AFU-5050W-12

 AFU-5050W-18

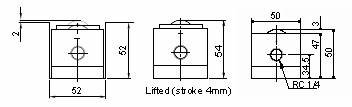

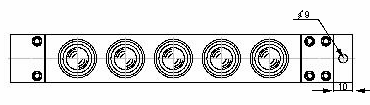

  Connection diagram

Connection examples

Example1: (connection of 2 Ball Transfer Units)
A(dimension) = 36 + 1 + L1 + 1 + L1 + 20
Example2:(connection of 3 Ball Transfer Units)
A(dimension) = 36 + 1 + L1 +1 + L1 + 1 + L1 + 20
Example3:(connection of 4 Ball Transfer Units)
A(dimension) = 36 + 1 + L1 +1 + L1 + 1 + L1 + 1 + L1 +20

Model

Dimensions (mm)

weight
(kg)

공기압과 부하능력과의 관계 (kgf)

L

L1

P

프리 베이스 업 1개

AFU 1개

사용공기압 MPa (kgf/cm²)

사용공기압 MPa (kgf/cm²)

0.40(4.1)

0.50(5.1)

0.60(6.1)

0.40(4.1)

0.50(5.1)

0.60(6.1)

AFU-5050W-1

157

100

---

2.5

1.02(104.0)

1.28(130.5)

1.53(156.0)

1.02(104.0)

1.28(130.5)

1.53(156.0)

AFU-5050W-2

207

150

1×P50=50

3.2

2.04(208.0)

2.56(261.0)

3.06(312.0)

AFU-5050W-3

257

200

2×P50=100

4.0

3.06(312.0)

3.84(391.6)

4.59(468.0)

AFU-5050W-4

307

250

3×P50=150

4.7

4.08(416.0)

5.12(522.1)

6.12(624.1)

AFU-5050W-5

357

300

4×P50=200

5.4

5.10(520.1)

6.40(652.6)

7.65(780.1)

AFU-5050W-6

407

350

5×P50=250

6.1

6.12(624.1)

7.68(783.1)

9.18(936.1)

AFU-5050W-7

457

400

6×P50=300

6.8

7.14(728.1)

8.96(913.7)

10.71(1092.1)

AFU-5050W-8

507

450

7×P50=350

7.6

8.16(832.1)

10.24(1044.2)

12.24(1248.1)

AFU-5050W-9

557

500

8×P50=400

8.3

9.18(936.1)

11.52(1174.7)

13.77(1404.1)

AFU-5050W-10

607

550

9×P50=450

9.0

10.20(1040.1)

12.80(1305.2)

15.30(1560.2)

AFU-5050W-11

657

600

10×P50=500

9.7

11.22(1144.1)

14.08(1435.8)

16.83(1716.2)

AFU-5050W-12

707

650

11×P50=550

10.4

12.24(1248.1)

15.36(1566.3)

18.36(1872.1)

AFU-5050W-13

757

700

12×P50=600

11.2

13.26(1352.1)

16.64(1696.8)

19.89(2028.2)

AFU-5050W-14

807

750

13×P50=650

11.9

14.28(1456.1)

17.92(1827.3)

21.42(2184.2)

AFU-5050W-15

857

800

14×P50=700

12.6

15.30(1560.2)

19.20(1957.8)

22.95(2340.2)

AFU-5050W-16

907

850

15×P50=750

13.3

16.32(1664.2)

20.48(2088.4)

24.48(2496.3)

AFU-5050W-17

957

900

16×P50=800

14.0

17.34(1768.2)

21.76(2218.9)

26.01(2652.3)

AFU-5050W-18

1007

950

17×P50=850

14.8

18.36(1872.2)

23.04(2349.4)

27.54(2808.3)
