Pneumatically actuated Ball Transfer Unit 3836 Series

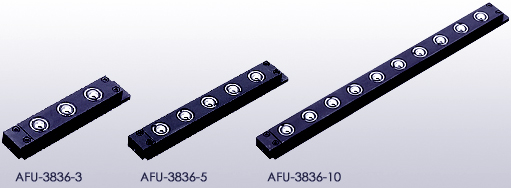

  AFU-3836-3

AFU-3836-5

AFU-3836-10

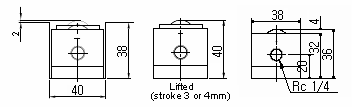

  Connection diagram

Connection examples

Example1: (connection of 2 Ball Transfer Units)
A(dimension) = 25 + 1 + L1 + 1 + L1 + 20
Example2:(connection of 3 Ball Transfer Units)
A(dimension) = 25 + 1 + L1 +1 + L1 + 1 + L1 + 20

Model

Dimensions (mm)

weight
(kg)

공기압과 부하능력과의 관계 (kgf)

L

L1

P

프리 베이스 업 1개

AFU1개

사용공기압 MPa (kgf/cm²)

사용 공기압 MPa (kgf/cm²)

0.40(4.1)

0.50(5.1)

0.60(6.1)

0.40(4.1)

0.50(5.1)

0.60(6.1)

AFU-3836-1

110

64

---

0.8

0.24
(24.5)

0.31
(31.6)

0.39
(39.8)

0.24(24.5)

0.31(31.6)

0.39(39.8)

AFU-3836-2

160

114

1×P50=50

1.2

0.48(48.9)

0.62(63.2)

0.78(79.5)

AFU-3836-3

210

164

2×P50=100

1.7

0.72(73.4)

0.93(94.8)

1.17(119.3)

AFU-3836-4

260

214

3×P50=150

2.1

0.96(97.9)

1.24(126.4)

1.56(159.1)

AFU-3836-5

310

264

4×P50=200

2.5

1.20(122.4)

1.55(158.1)

1.95(198.8)

AFU-3836-6

360

314

5×P50=250

3.0

1.44(146.8)

1.86(189.7)

2.34(238.6)

AFU-3836-7

410

364

6×P50=300

3.4

1.68(171.3)

2.17(221.3)

2.73(278.4)

AFU-3836-8

460

414

7×P50=350

3.8

1.92(195.8)

2.48(252.9)

3.12(318.2)

AFU-3836-9

510

464

8×P50=400

4.3

2.16(220.3)

2.79(284.5)

3.51(357.9)

AFU-3836-10

560

514

9×P50=450

4.7

2.40(244.7)

3.10(316.1)

3.90(397.7)

AFU-3836-11

610

564

10×P50=500

5.1

2.64(269.2)

3.41(347.7)

4.29(437.5)

AFU-3836-12

660

614

11×P50=550

5.4

2.88(293.7)

3.72(379.3)

4.68(477.2)

AFU-3836-13

710

664

12×P50=600

6.0

3.12(318.2)

4.03(411.0)

5.07(517.0)

AFU-3836-14

760

714

13×P50=650

6.4

3.36(342.6)

4.34(442.6)

5.46(556.8)

AFU-3836-15

810

764

14×P50=700

6.8

3.60(367.1)

4.65(474.2)

5.85(596.5)

AFU-3836-16

860

814

15×P50=750

7.3

3.84(391.6)

4.96(505.8)

6.24(636.3)

AFU-3836-17

910

864

16×P50=800

7.7

4.08(416.0)

5.27(537.4)

6.63(676.1)

AFU-3836-18

960

914

17×P50=850

8.1

4.32(440.5)

5.58(569.0)

7.02(715.8)
