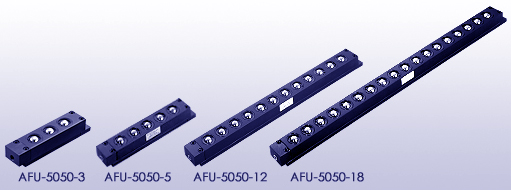

Pneumatically actuated Ball Transfer Unit 5050 Series

   AFU-5050-3

 AFU-5050-5

  AFU-5050-12

 AFU-5050-18

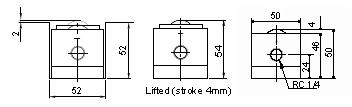

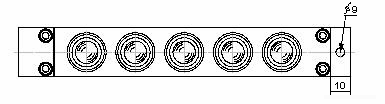

  Connection diagram

Connection examples

Example1: (connection of 2 Ball Transfer Units)
A(dimension) = 36 + 1 + L1 + 1 + L1 + 20
Example2:(connection of 3 Ball Transfer Units)
A(dimension) = 36 + 1 + L1 +1 + L1 + 1 + L1 + 20
Example2:(connection of 4 Ball Transfer Units)
A(dimension) = 36 + 1 + L1 +1 + L1 + 1 + L1 + 1 + L1 +20

 Model

Dimensions (mm)

weight
(kg)

공기압과 부하능력과의 관계 (kgf)

L

L1

P

프리 베이스 업 1개

AFU 1개

사용공기압 MPa (kgf/cm²)

사용공기압 MPa (kgf/cm²)

0.40(4.1)

0.50(5.1)

0.60(6.1)

0.40(4.1)

0.50(5.1)

0.60(6.1)

AFU-5050-1

140

83

---

2.0

0.51
(52.0)

0.64
(65.3)

0.77
(78.5)

0.51(52.0)

0.64(65.3)

0.77(78.5)

AFU-5050-2

190

133

1×P50=50

2.8

1.02(104.0)

1.28(130.5)

1.54(157.0)

AFU-5050-3

240

183

2×P50=100

3.6

1.53(156.0)

1.92(195.8)

2.31(235.6)

AFU-5050-4

290

233

3×P50=150

4.5

2.04(208.0)

2.56(261.0)

3.08(314.1)

AFU-5050-5

340

283

4×P50=200

5.3

2.55(260.0)

3.20(326.3)

3.85(392.6)

AFU-5050-6

390

333

5×P50=250

6.1

3.06(312.0)

3.84(391.6)

4.62(471.1)

AFU-5050-7)

440

383

6×P50=300

6.9

3.57(364.0)

4.48(456.8)

5.39(549.6)

AFU-5050-8

490

433

7×P50=350

7.7

4.08(416.0)

5.12(522.1)

6.16(628.1)

AFU-5050-9

540

483

8×P50=400

8.6

4.59(468.0)

5.76(587.4)

6.93(706.7)

AFU-5050-10

590

533

9×P50=450

9.4

5.10(520.1)

6.40(652.6)

7.70(785.2)

AFU-5050-11

640

583

10×P50=500

10.2

5.61(572.1)

7.04(717.9)

8.47(863.7)

AFU-5050-12

690

633

11×P50=550

11.0

6.12(624.1)

7.68(783.1)

9.24(942.2)

AFU-5050-13

740

683

12×P50=600

11.8

6.63(676.1)

8.32(848.4)

10.01(1020.7)

AFU-5050-14

790

733

13×P50=650

12.6

7.14(728.1)

8.96(913.7)

10.78(1099.3)

AFU-5050-15

840

783

14×P50=700

13.4

7.65(780.1)

9.60(978.9)

11.55(1177.8)

AFU-5050-16

890

833

15×P50=750

14.3

8.16(832.1)

10.24(1044.2)

12.32(1256.3)

AFU-5050-17

940

883

16×P50=800

15.1

8.67(884.1)

10.88(1109.5)

13.09(1334.8)

AFU-5050-18

990

933

17×P50=850

15.9

9.18(936.1)

11.52(1174.7)

13.86(1413.3)
