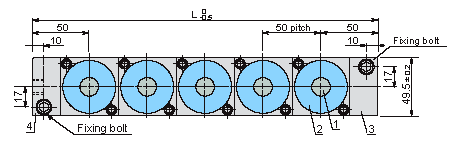

Name |
Material |
| 1 |
Ball |
SUJ2 |
| 2 |
Cover |
MC901 |
| 3 |
Flange (A) |
A6023-T5 |
| 4 |
Flange (B) |
A6063-T5 |
| 5-1 |
Bar |
A6043-T5 | |
| |
|
|
|
|
ISR50> double piston
type
| Type |
Ball lifter length L (mm) |
No. of balls
(Nc) |
Lifting ability per ball lifter kN
(kgf) |
Supplied air pressure MPa
(kgf/square
centimeter) |
| 0.4(4.08) |
0.5(5.10) |
0.6(6.12) |
|
ISR50D-100-A
|
100 |
1 |
0.98(100) |
1.24(127) |
1.51(154) |
|
ISR50D-150-A
|
150 |
2 |
1.96(200) |
2.49(254) |
3.02(308) |
|
ISR50D-200-A
|
200 |
3 |
2.94(300) |
3.73(381) |
4.53(462) |
|
ISR50D-250-A
|
250 |
4 |
3.92(400) |
4.98(508) |
6.04(616) |
|
ISR50D-300-A
|
300 |
5 |
4.90(500) |
6.22(635) |
7.55(770) |
|
ISR50D-350-A
|
350 |
6 |
5.88(600) |
7.47(762) |
9.06(924) |
|
ISR50D-400-A
|
400 |
7 |
6.86(700) |
8.71(889) |
10.6(1078) |
|
ISR50D-450-A
|
450 |
8 |
7.84(800) |
9.96(1016) |
12.1(1232) |
|
ISR50D-500-A
|
500 |
9 |
8.82(900) |
11.2(1143) |
13.6(1386) |
|
ISR50D-550-A
|
550 |
10 |
9.80(1000) |
12.4(1270) |
15.1(1540) |
|
ISR50D-600-A
|
600 |
11 |
10.8(1100) |
13.7(1397) |
16.6(1694) |
|
ISR50D-650-A
|
650 |
12 |
11.8(1200) |
14.9(1524) |
18.1(1848) |
|
ISR50D-700-A
|
700 |
13 |
12.7(1300) |
16.2(1651) |
19.6(2002) |
|
ISR50D-750-A
|
750 |
14 |
13.7(1400) |
17.4(1778) |
21.1(2156) |
|
ISR50D-800-A
|
800 |
15 |
14.7(1500) |
18.7(1905) |
22.6(2310) |
|
ISR50D-850-A
|
850 |
16 |
15.7(1600) |
19.9(2032) |
24.1(2464) |
|
ISR50D-900-A
|
900 |
17 |
16.7(1700) |
21.2(2159) |
25.7(2618) |
|
ISR50D-950-A
|
950 |
18 |
17.6(1800) |
22.4(2286) |
27.2(2772) |
|
ISR50D-1000-A
|
1000 |
19 |
18.6(1900) |
23.6(2413) |
28.7(2926) | |
|
|
- Withstand pressure: 0.9MPa (9.18kgf/square centimeter)
-
Working pressure range: 0.05-0.6MPa (0.51-6.12kgf/square centimeter)
-
Operating temperature range: -5 - 80° (without drain freezing)
Air and
inert gas (no filling up)
|
|
|
 |
|
|
