ISB BALL TRANSFER (BALL CASTER)

   Products : > Ball Transfer > ISB > ÀϺ»Á¦Ç° ½Ã¸®Áî


IS type (»óÇâ¿ë) | IS-N type (º¼Æ®Å¸ÀÔ) | IS-B/BF (½ºÇÁ¸µÅ¸ÀÔ) | S type | IR type (·Ñ·¯À¯´Ö) | IP type (ÀÚÀ¯¹æÇâ¿ë) | UF type (ÇÏÇâ¿ë)
IA type (»óÇâ¿ë) | IB type (»óÇâ¿ë) | IJH/IJP (»óÇâ¿ë) | IK type (ÇÏÇâ¿ë) | IK-N (ÇÏÇâ¿ë º¼Æ®Å¸ÀÔ) | SW type (Ư¼öÂ÷·û) | Turntable type | Viless
IM type(»óÇâ¿ë) | US type | Air Ball Lifter Series | ISR38 Series | ISR50S Series | ISR50D Series | ISC(º£½ºÆçŸÀÔ) | ISC(Á¶ÇÕŸÀÔ) | ILS type

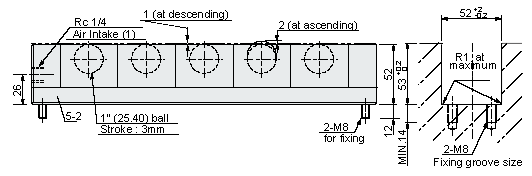

 ¢º AIR BALL LIFTER ISR50S



- Name Material
1 Ball SUJ2
2 Cover MC901
3 Flange (A) A6023-T5
4 Flange (B) A6063-T5
5-1 Bar A6043-T5


                 °¢ Á¦Ç°ÀÇ   ´Ù¿î·Îµå ¹ÞÀ»¼ö ÀÖ½À´Ï´Ù.

-ISR50>single piston type
Type
Ball lifter length L (mm)
No. of balls (Nc)
Lifting ability per ball lifter kN (kgf)
Supplied air pressure MPa
(kgf/square centimeter)
0.4(4.08)
0.5(5.10)
0.6(6.12)
100
1
0.46(47)
0.60(61)
0.73(75)
150
2
0.92(94)
1.20(122)
1.47(150)
200
3
1.38(141)
1.79(183)
2.20(225)
250
4
1.84(188)
2.39(244)
2.94(300)
300
5
2.30(235)
2.99(305)
3.68(375)
350
6
2.76(282)
3.59(366)
4.41(450)
400
7
3.22(329)
4.19(427)
5.15(525)
450
8
3.69(376)
4.78(488)
5.88(600)
500
9
4.15(423)
5.38(549)
6.62(675)
550
10
4.61(470)
5.98(610)
7.35(750)
600
11
5.07(517)
6.58(671)
8.09(825)
650
12
5.53(564)
7.18(732)
8.82(900)
700
13
5.99(611)
7.77(793)
9.56(975)
750
14
6.45(658)
8.37(854)
10.3(1050)
800
15
6.91(705)
8.97(915)
11.0(1125)
850
16
7.37(752)
9.57(976)
11.8(1200)
900
17
7.83(799)
10.2(1037)
12.5(1275)
950
18
8.29(846)
10.8(1098)
13.2(1350)
1000
19
8.75(893)
11.4(1159)
14.0(1425)


      Specifications

    - Withstand pressure: 0.9MPa (9.18kgf/square centimeter)
    - Working pressure range: 0.05-0.6MPa (0.51-6.12kgf/square centimeter)
    - Operating temperature range: -5 - 80° (without drain freezing)
       Air and inert gas (no filling up)



        * Common to ISR38 and ISR50D.
