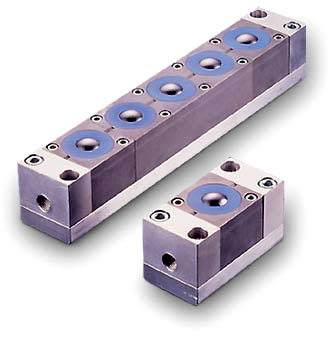

ISB BALL TRANSFER (BALL CASTER)

   Products : > Ball Transfer > ISB > ÀϺ»Á¦Ç° ½Ã¸®Áî


IS type (»óÇâ¿ë) | IS-N type (º¼Æ®Å¸ÀÔ) | IS-B/BF (½ºÇÁ¸µÅ¸ÀÔ) | S type | IR type (·Ñ·¯À¯´Ö) | IP type (ÀÚÀ¯¹æÇâ¿ë) | UF type (ÇÏÇâ¿ë)
IA type (»óÇâ¿ë) | IB type (»óÇâ¿ë) | IJH/IJP (»óÇâ¿ë) | IK type (ÇÏÇâ¿ë) | IK-N (ÇÏÇâ¿ë º¼Æ®Å¸ÀÔ) | SW type (Ư¼öÂ÷·û) | Turntable type | Viless
IM type(»óÇâ¿ë) | US type | Air Ball Lifter Series | ISR38 Series | ISR50S Series | ISR50D Series | ISC(º£½ºÆçŸÀÔ) | ISC(Á¶ÇÕŸÀÔ) | ILS type




 ¢º AIR BALL LIFTER ISR38



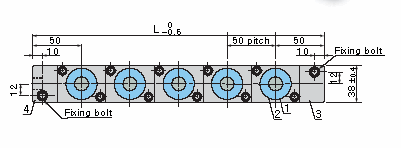

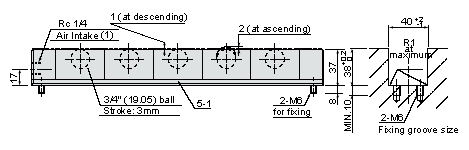

- Name Material
1 Ball SUJ2
2 Cover MC901
3 Flange (A) A6023-T5
4 Flange (B) A6063-T5
5-1 Bar SGD400-D


          °¢ Á¦Ç°ÀÇ   ´Ù¿î·Îµå ¹ÞÀ»¼ö ÀÖ½À´Ï´Ù.


--ISR38
Type Ball lifter length L (mm) No. of balls (Nc) Lifting ability per ball lifter kN (kgf)
Supplied air pressure MPa
(kgf/square centimeter)
0.4(4.08) 0.5(5.10) 0.6(6.12)

ISR38-100-A

100 1 0.32(33) 0.41(42) 0.51(52)

ISR38-150-A

150 2 0.65(66) 0.82(84) 1.02(104)

ISR38-200-A

200 3 0.97(99) 1.23(126) 1.53(156)

ISR38-250-A

250 4 1.29(132) 1.65(168) 2.04(208)

ISR38-300-A

300 5 1.62(165) 2.06(210) 2.55(260)

ISR38-350-A

350 6 1.94(198) 2.47(252) 3.06(312)

ISR38-400-A

400 7 2.26(231) 2.88(294) 3.57(364)

ISR38-450-A

450 8 2.59(264) 3.29(336) 4.08(416)

ISR38-500-A

500 9 2.91(297) 3.70(378) 4.59(468)

ISR38-550-A

550 10 3.23(330) 4.12(420) 5.10(520)

ISR38-600-A

600 11 3.56(363) 4.53(462) 5.61(572)

ISR38-650-A

650 12 3.88(393) 4.94(504) 6.12(624)

ISR38-700-A

700 13 4.20(429) 5.35(546) 6.62(676)

ISR38-750-A

750 14 4.53(462) 5.76(588) 7.13(728)

ISR38-800-A

800 15 4.85(495) 6.17(630) 7.64(780)

ISR38-850-A

850 16 5.17(528) 6.59(672) 8.15(832)

ISR38-900-A

900 17 5.50(561) 7.00(714) 8.66(884)

ISR38-950-A

950 18 5.82(594) 7.41(756) 9.17(936)

ISR38-1000-A

1000 19 6.14(627) 7.82(798) 9.68(988)


      Specifications

    - Withstand pressure: 0.9MPa (9.18kgf/square centimeter)
    - Working pressure range: 0.05-0.6MPa (0.51-6.12kgf/square centimeter)
    - Operating temperature range: -5 - 80° (without drain freezing)
       Air and inert gas (no filling up)



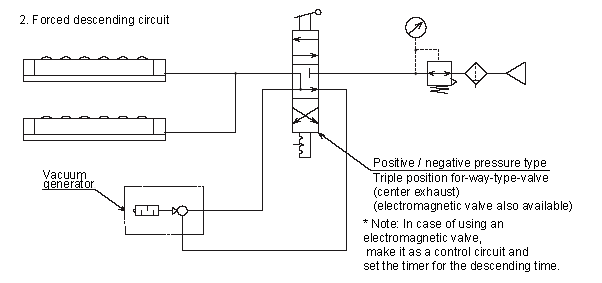

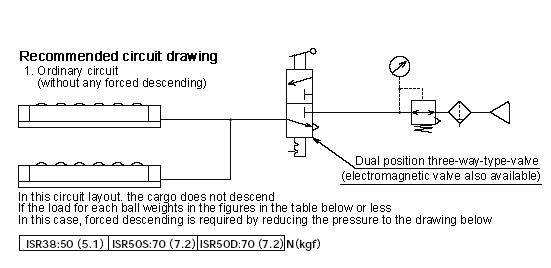

        * Common to ISR50S and ISR50D.
