 ¢º THK SLIDE PACK

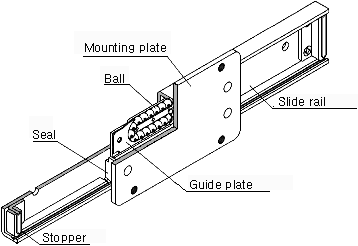

Slide Pack type FBW is an LM system in which a slider with balls incorporated therein performs perpetual
linear motion in a precision press-formed raceway casing. Used in combination with dedicated rails,
Slide Pack type

FBW provides a lightweight, compact LM system at low cost.

The slider and dedicated rail are nitrided and therefore highly wear-resistant
(model 2560R is made of stainless steel).

Type FBW-R is a low-noise type obtained by improving the conventional type.

The Slide Pack type FBW series is suitable for the slides of copiers, tool cabinets, cabinets
for various electronic devices, mobile seats, vending machines, machine-tool slide covers, cash registers, heavy-duty doors, and curtail walls, to name just a few.





Types and Features




FBW2560R

FBW3590R

Stainless steel compact type


Standard type


FBW50110R

FBW50110H

Heavy-load type

High-rigidity type
