 ¢º THK Cross Roller Guide

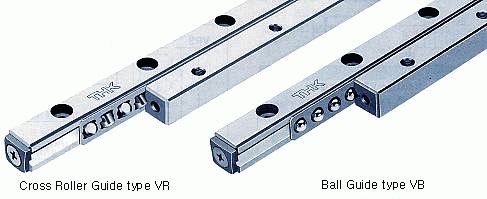

- CROSS ROLLER GUIDE type VR
-
BALL GUIDE type VB







 The unique roller-holding mechanism of Cross Roller Guide type VR
enables the realization of an increased effective contact length for rollers.
Designed by combining Roller Cage type R with a shortened roller pitch,
and Dedicated Rail type V, which is precision-ground after receiving special
heat treatment, type VR is a highly rigid, high-precision, compact finite linear-motion system.


The Cross Roller Guide can be applied to a wide range of equipment:
office automation equipment and peripherals, various measuring instruments,
printed-circuit-board drilling machines and similar precision equipment,
optical measuring instruments, optical stages and handling mechanisms,
and slides used in X-ray equipment, to name just a few.


Designed by combining Ball Cage type B, in which precision steel balls are
arranged at a short pitch, and Dedicated Rail type V, Ball Guide type VB is
a low-friction, high-precision finite linear-motion system.
