 ¢º NSK LM GUIDE LS type

 Self aligning, high load capacity.  Gothic arch groove and contact angle of ball produces low friction two-point contact under general load, increased displacement for four-point contact under impact load.
  • Low profile design.
  • Three accuracy grades available.
  • Four carriage styles available.
  • Self aligning capability.
  • Preload or clearance styles available.
  • Interchangeable carriages with ball retainer system.
  • Available in stainless steel.



High Accuracy

The lateral reference surface and ball grooves are ground simultaneously for high accuracy and extended life.

Ease of Installation

Mounting of rails is simplified due to their excellent linearity and minimum bolt-hole pitch error.

Interchangeability in the Series

Rails and ball slides do not have to be purchased as a set, reducing replacement costs.
Standardization is made much easier.

High Resistance Against Impact Load

Under normal operation, downward loads are carried by the upper two rows of balls.
The gothic arch design allows for vertical shock loads carried by the upper and lower two rows of balls.

Low Noise

Recirculating balls are cushioned by Plastic End Caps for smooth operation.
(Metal End Caps are also available for high speed and higher heat applications).

Low Friction

Balls roll with contact at two points.

Short Delivery Lead Time

The LH and LS series is stocked for fast delivery.

Rail Butting Capability

Rails can be butted together for applications requiring extra long travel lengths.

Protectors and Double Seal Accessories

Steel protectors remove high temperature dust particles such as welding particles.
Double seals are also available to increase sealing effect when foreign matters are abundant.

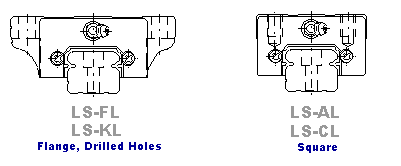

    LS-CL
    LS-AL
    LS-JL
    LS-EL
    LS-KL
    LS-FL
    LAS-CL
    LAS-AL
    LAS-EL
    LAS-KL
    LAS-FL
