Adjustment Dial은 좌, 우 180° 회전되어 충돌속도에 따른 Damping 범위를 자유로이 조절할 수 있습니다.
-
Body는 나사산으로 되어있어 표면적을 증가시키고 충격흡수에 따른 열에너지를 외부로보다 빨리
방출시키며 취부시 위치조절이 가능하여 정확한 위치고정이 용이합니다.
-
Piston Rod는 경질 Cr도금 처리되어 있으며 로드베어링은 장시간 사용하여도 견디는
특수재질로서 Seal을 보호화며 긴수명을 보장합니다.
-
Cap 부착 사용시 피스톤에 Bottoming현상이 생기지 않는 구조로 되어 있으며 Stop Collar취부가
필요없으며 Polypad or Urethane Cap을 사용하면 소음을 감소시킬수 있습니다.
-
Special 사양 주문제작: 표준품과는 다른 나사산, 스테인레스, 저온 및 고온등 특성에 맞게
주문제작가능.
-
Temperature Range: 표준유 -20~80° / 특수유 -30~100°C 사용
-
Robtic, 포장기, 직조기, 공작기계, 자동화공업, 타이어제조설비, 자동차제조설비, 주조설비, 크레인등
산업전반에 걸쳐 다용도로 이용되고 있습니다.
|
|
|
|
|
|
|
|

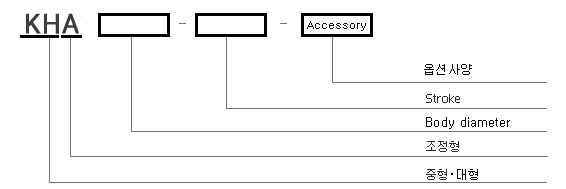

Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 42-25
|
25
|
250
|
125,000
|
36-3,600
| 3,000-105,000
|
55
|
85
|
1.25
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 42-50
|
50
|
500
|
166,000
|
45-6,150
| 5,900-170,000
|
40
|
85
|
1.4
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 42-75
|
75
|
750
|
200,000
|
54-9,500
| 6,200-190,000
|
40
|
90
|
1.6
|
|
 |
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 64-50
|
50
|
1,300
|
270,000
|
82-12,600
| 10,000-440,000
|
75
|
160
|
3.7
|
|
 |
| |
  |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 64-100
| 100
| 2,600
| 360,000
| 115-17,000
| 14,000-440,000
| 75
| 165
|
4.5
|
|
| |
 |
| |
  |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 64-150
|
150
|
3,900
|
420,000
|
140-22,000
| 19,000-440,000
|
90
|
280
|
5.3
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 85-50
|
50
|
2,300
|
370,000
|
200-37,000
| 35,000-500,000
|
110
|
215
|
6.4
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 85-90
| 90
| 4,000
| 650,000
| 230-40,000
| 35,000-500,000
| 110
|
215
| 7.6
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 85-125
| 125
| 5,700
| 930,000
| 300-43,000
| 41,000-500,000
| 90
| 215
| 8.6
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 85-165
| 165
| 7,300
| 1,210,000
| 360-45,000
| 43,000-500,000
| 130
| 350
| 9.8
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 115-50
| 50
| 3,700
| 1,501,000
| 370-44,000
| -
| 180
| 280
| 16
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 115-100
| 100
| 7,400
| 1,805,000
| 370-57,000
| -
| 160
| 280
| 19
|
|
| |
 |
| |
  |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 115-150
| 150
| 11,100
| 2,100,000
| 370-89,000
| -
| 150
| 290
| 21
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 115-200
| 200
| 14,800
| 2,405,000
| 390-118,000
| -
| 130
| 290
| 31
|
|
| |
 |
| |
|
Model
|
Stroke
(㎜)
s
|
Max
Energy/Cycle
(Nm)
ET
|
Max
Energy/Hour
(Nm)
ETC
|
Effective Weight
(kg)
We
|
Return Coil Spring
(N)
|
Weight
(g)
|
Standard
Type
| Low Damping
Type
|
Extension
|
Compression
|
|
KHA 115-250
| 250
| 18,500
| 2,710,000
| 440-145,000
| -
| 120
| 300
| 34
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
| |
|

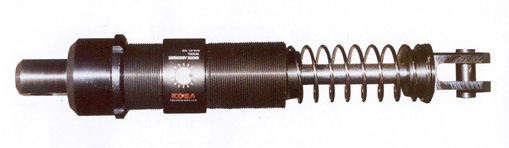

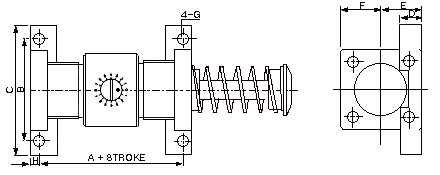

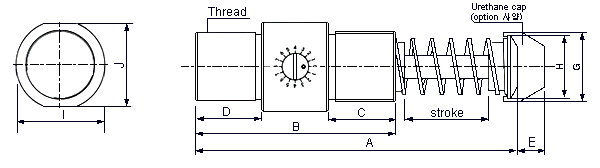

 Shock Absorber Accessories Series : Clevis Mount
|
|
|
|
|
|
|
 |
|
|
|
Model
|
Stroke
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
| L |
|
KHA 42-25
|
25
|
198
|
23.5 |
22 |
24 |
24 |
50 |
13 |
10 |
12 |
24 |
38
| 19 |
|
KHA 42-50
|
50
| 248
|
|
KHA 42-75
|
75
| 298
|
|
KHA 64-50
|
50
|
225
|
34.5 |
27 |
38 |
38 |
74 |
19 |
19 |
16 |
38 |
58
| 32 |
|
KHA 64-100
| 100
| 325
|
|
KHA 64-150
|
150
| 457
|
|
KHA 85-50
|
50
|
245
|
34 | 27 | 38 | 38 | 98 | 19 | 19 | 16 | 38 |
72
| 32 |
| KHA 85-90
| 90
| 325
|
| KHA 85-125
| 125
| 400
|
| KHA 85-165
| 165
| 495
|
| KHA 115-50
| 50
| 315
| 46 | 44 | 56 | 56 | 124 | 26 | 26 | 38 | 57 |
98
| 38 |
| KHA 115-100
| 100
| 415
|
| KHA 115-150
| 150
| 515
|
| KHA 115-200
| 200
| 645
|
| KHA 115-250
| 250
| 745
|
|
|
|
|

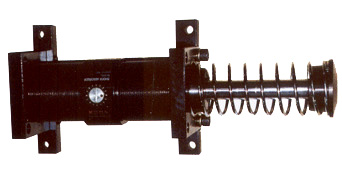

Shock Absorber Accessories Series : Foot Mount
|
|
|
|
|
|
|
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
Bolt Size
|
|
KHA 42
|
56 |
76 |
96 |
16 |
30 |
30 |
9 |
7 |
8 |
|
KHA 64
| 70 | 124 | 146 | 20 | 45 | 45 | 11 | 10 | 10 |
|
KHA 85
| 60 | 140 | 166 | 24 | 52 | 52 | 15 | 15 | 14 |
|
KHA 115
|
106 |
165 |
206 |
32 |
70 |
70 |
17 |
22 |
16 |
|
|
|
