 ¢º BUSHING - SAMICK CASE UNITS


 .The case is compact and light weight, and the standard type Linear Bushing is assembled inside.

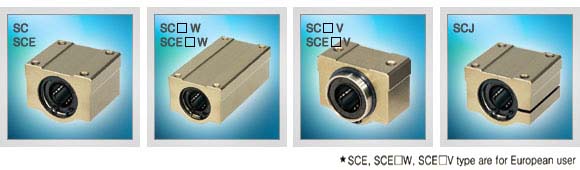

SC(E) type

Standard type aluminum Case Unit.
Simple mounting with mounting bolt to the table.
SC(E)¤±W type
Double Standard type Linear Bushing assembled type aluminum Case Unit.
SC(E)¤±V type
Short type aluminum Case Unit with a standard type Linear Buahing.
More compact design than SC(E) type is available.
SCJ type
Clearance adjustable type aluminum Case Unit by slotting in axial direction.
If high precise positioning is requied, SCJ type can minimize the effect of clearnace between shaft and case.



* assembled Linear Bushing is orientated to have maximum load rating against top of Cas Unit.
