 ¢º BUSHING - SAMICK LINEAR BUSHING


 SAMICK Linear Bushing, LM type is the linear motion system with unlimited stroke by applying with LM shaft. Because of the point contact between Balls and LM shaft, minimum friction can be acquired and that can give you the high precision motion.


Components and Features:

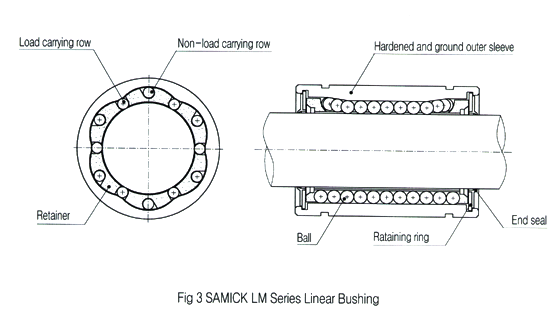

As shown in Fig 3 SAMICK Linear Bushing serve the alignment of the balls toward the LM shaft by the single retainer and cylinderical shafe of raceway. Outer sleeve is made of high-carbon chrominum bearing steel, and inner and outer grinding process are applied after heat treatment.

 Interchangability
The dimensions of SAMICK Linear Bushing are standardized to have full interchangeability. LM shaft is porvided with the cylinderical grinding to have high precision fitting clearance.
Rigid Outer Sleeve Hardened and precisely ground
outer sleeve is made of bearing steel, and can be directly assembled with the needle bearing on outer surface.
High precision Retainer The single body retainer guides 4~6 ball circuits, and it gives the precision guiding
against the balls moving direction and smooth motion.
LM Case Unit LM Case Unit, SC type is consist of the
light aluminum case and LM type Linear Bushing, so the assembly can be finished by simple bolting.
Longer life can be obtained by adjusting the ball circuits orientation of Linear Bushing against the direction of load.



Application:

 SAMICK Linear Bushing is widly used in precision equipments; computer and peripheral equipments,
measuring equipments, auto recording equipments, and 3D measuring equipments, and linear motion system
in machine for mass production; multi-axis drilling machines, punching press, tool grinders, auto-gas cutters, printing machines, card selectors, food packing machines, and etc.
