¢ºLM GUIDE- SNR , SNS-CÇü   SNR , SNS-LCÇü




SNR·SNS-C



SNR·SNS-LC



ȣĪ Çü¹ø

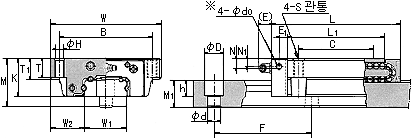

¿ÜÇü Ä¡¼ö

LMºí·Ï Ä¡¼ö

³ôÀÌ
M

Æø
W

±æÀÌ
L

B

C

S

H

L1

T

T1

K

N

N1

E

E1

d0

±¸¸®½º
´ÏÇÃ

SNR 25 C
SNS 25 C
SNR 25 LC
SNS 25 LC

31

72

84
103

59

45
22.5

M8

6.8

62.4
81.6

12

16

25.5

7

6

10

4

3.9

B-M6F

SNR 30 C
SNS 30 C
SNR 30 LC
SNS 30 LC

38

90

98
120.5

72

52
26

M10

8.5

72.1
94.6

14

18

31

7

7

10

6.5

3.9

B-M6F

SNR 35 C
SNS 35 C
SNR 35 LC
SNS 35 LC

44

100

109.5
135

82

62
31

M10

8.5

79
104.5

16

20

35

8

8

9

6

5.2

B-M6F

SNR 45 C
SNS 45 C
SNR 45 LC
SNS 45 LC

52

120

138.2
171

100

80
40

M12

10.5

105
137.8

20

22

40.4

10

8

14

8.5

5.2

B-PT1/8

SNR 55 C
SNS 55 C
SNR 55 LC
SNS 55 LC

63

140

163.3
200.5

116

95
47.5

M14

12.5

123.6
160.8

22

24

49

11

10

13

10

5.2

B-PT1/8

SNR 65 C
SNS 65 C
SNR 65 LC
SNS 65 LC

75

170

186
246

142

110
55

M16

14.5

143.6
203.6

25

28

60

16

15

13.5

9

8.2

B-PT1/8

          ¡Ø °¢ ¸ðµ¨ÀÇ Ä³µåµµ¸éÀ» ´Ù¿î·Îµå ¹ÞÀ¸½Ç¼ö ÀÖ½À´Ï´Ù



ȣĪ Çü¹ø

LM·¹ÀÏ Ä¡¼ö

±âº»Á¤°ÝÇÏÁß

Áú·®

Æø

W1

 0
-0.05

W2

³ôÀÌ
M
1

ÇÇÄ¡
F

d×D×h

SNRÇü

SNSÇü

LMºí·Ï
kg

LM·¹ÀÏ
kg/m

C
kN

C0
kN

C
kN

C0
kN

SNR 25 C
SNS 25 C
SNR 25 LC
SNS 25 LC

25

23.5

17

40

6×9.5×8.5

31
42

79
101

26
35

61
78

0.6
0.8

3.1

SNR 30 C
SNS 30 C
SNR 30 LC
SNS 30 LC

28

31

21

80

7×11×9

49
65

106
138

40
54

81
106

1.0
1.3

4.4

SNR 35 C
SNS 35 C
SNR 35 LC
SNS 35 LC

34

33

24.5

80

9×14×12

63
86

144
188

52
71

110
144

1.5
2.0

6.2

SNR 45 C
SNS 45 C
SNR 45 LC
SNS 45 LC

45

37.5

29

105

14×20×17

96
126

216
288

80
105

167
222

2.3
3.4

9.8

SNR 55 C
SNS 55 C
SNR 55 LC
SNS 55 LC

53

43.5

36.5

120

16×23×20

131
170

292
383

109
141

225
295

3.6
5.5

14.5

SNR 65 C
SNS 65 C
SNR 65 LC
SNS 65 LC

63

53.5

43

150

18×26×22

189
260

409
572

157
216

315
441

7.4
10.5

20.5
