¢º Products : LM Guide >THK LM Guide > Actuator type KR > 46¡à¡à¡à (cover provided)

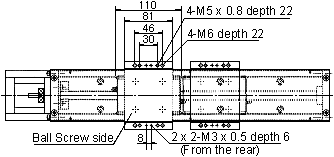

      KR4610A (With one long block)    KR4620A (With one long block)
      KR4610B (With two long blocks)  KR4620B (With two long blocks)




      KR4610C (With one short block)    KR4620C (With one short block)
      KR4610D (With two short blocks)   KR4620D (With two short blocks)





Outer-rail
length
Overall
length

L
1

KR46¡à¡àA

KR46¡à¡àB

KR46¡à¡àC

KR46¡à¡àD

H

n1

n2

Possible stroke range Possible stroke range Possible stroke range Possible stroke range

340

440.5

208

98

245.5

173

70

3

2

440

540.5

308

198

345.5

273

20

4

3

540

640.5

408

298

445.5

373

70

5

3

640

740.5

508

398

545.5

473

20

6

4

740

840.5

608

498

645.5

573

70

7

4

940

1040.5

808

698

845.5

773

70

9

5

          ¡Ø Download CAD Files
          ¡ØThe possible stroke range of model KR46¡à¡àB and KR46¡à¡àD is the value for closely linked double blocks.
