¢º Products : LM Guide >THK LM Guide > Actuator type KR >2001 (cover provided)

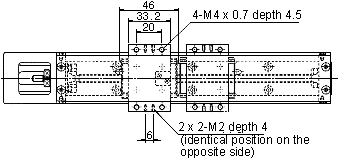

      KR2001A (with one long block)
      KR2001B (with two long blocks)






Outer-rail
length
Overall length
L
1

KR2001A

KR2001B

G

n

Possible stroke range Possible stroke range

100

159

41.5

£­

20

2

150

209

91.5

45.5

15

3

200

259

141.5

95.5

40

3

                ¡Ø Download CAD Files

               ¡ØThe possible stroke range of model KR2001B is the value for closely linked double blocks.
