¢ºBall Spline - Types and Features



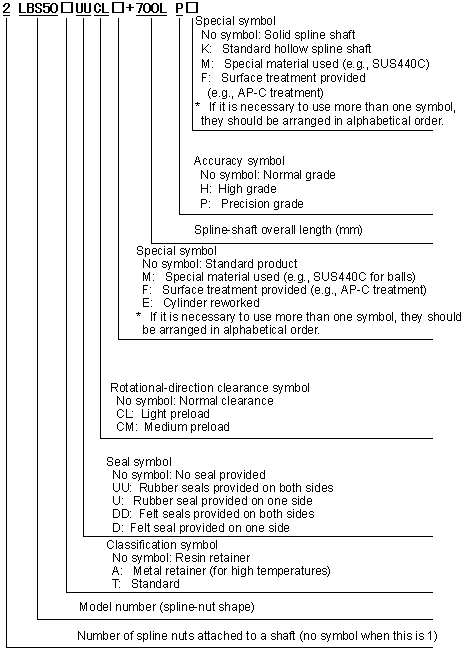

Cylindrical Ball Spline Type LBS Cylindrical Ball Spline Type LBST

The spline nut is of a straight cylindrical shape. When it is necessary to apply a torque, insert a key into the keyway. Type LBS is the most compact of all Ball Spline types. The spline-nut exterior is provided with anti-carbonization treatment. The outer diameter is the same as that of type LBS, but the spline nut is made longer to enable it to bear heavy loads. This type is most suitable where there is insufficient installation space and where high torque, overhanging load, and moments are exerted.
Flanged Ball Spline Type LBF Square Ball Spline Type LBH

The spline nut can be attached to the housing via the flange, making assembly simple. It is most suitable where the housing may deform if a keyway is cut thereon, and where the housing width is limited. Knock pins that can be driven into the flange completely eliminate the angular backlash that occurs in fitting part. The rigid square spline nut does not require a housing, and can therefore be attached directly to a machine body. This provides a compact, high-rigidity linear quide part.
Standard Ball Spline (standard off-the-shelf item)

Precision-ground spline shafts of various standardized lengths (LBS15 through LBS50) and a variety of spline nuts can be freely combined to your specifications, enabling quick delivery at a low price. For the standards
Precision Solid Spline Shaft
(standard type)
Hollow Spline Shaft
(type K)

The spline shaft is formed by cold drawing, and the raceways are cut into the shaft to a high degree of precision. A spline nut is attached to the resulting spline shaft. This type is made hollow through cold drawing, to enable it to accommodate pipes and wires and vent air, or to reduce its weight.
Special Spline Shaft Full Spline (standard off-the-shelf item)

A shaft with a greater diameter at its ends or mid-point can be produced upon request, by machining it to the required spline shape. Full Spline Type LBS features more than one spline nut attached to a long, straight shaft. The spline-shaft length and the number of spline nuts can be changed freely as required through reworking.

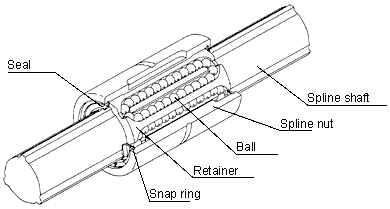

Construction of Ball Spline Type LBS
