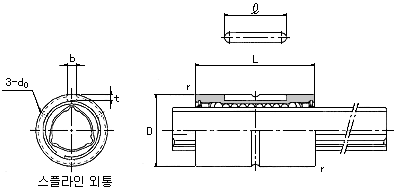

Ball Spline - Type LBS |
|
|
|
|
|
Model
No. |
Spline-nut dimensions |
Outer diameter
|
Length |
Keyway dimensions |
r |
d0
|
D |
Tolerance |
L |
Tolerance |
b H8 |
t +0.05 0 |
|
LBS 15 |
23 |
|
40 |
|
3.5 |
2 |
20 |
0.5 |
2 |
LBS 20 |
30 |
|
50 |
4 |
2.5 |
26 |
0.5 |
2 |
LBS 25 |
37 |
60 |
|
5 |
3 |
33 |
0.5 |
2 |
LBS 30 |
45 |
70 |
7 |
4 |
41 |
1.0 |
3 |
LBS 40 |
60 |
|
90 |
10 |
4.5 |
55 |
1.0 |
3 |
LBS 50 |
75 |
100 |
15 |
5 |
60 |
1.5 |
4 |
LBS 70 |
100 |
|
110 |
18 |
6 |
68 |
2.0 |
4 |
LBS 85 |
120 |
140 |
|
20 |
7 |
80 |
2.5 |
5 |
LBS 100 |
140 |
|
160 |
28 |
9 |
93 |
3.0 |
5 | |
Model
No. |
Basic torque rating |
Basic load rating (radial) |
Static permissible moment |
Mass |
CT N·m |
C0T N·m |
C kN |
C0 kN |
MA.1 N·m |
MA.2 N·m |
Spline nut kg |
Spline shaft kg/m |
LBS 15 |
30.4 |
74.5 |
4.4 |
8.4 |
25.4 |
185 |
0.06 |
1.0 |
LBS 20 |
74.5 |
160 |
7.8 |
14.9 |
60.2 |
408 |
0.14 |
1.8 |
LBS 25 |
154 |
307 |
13.0 |
23.5 |
118 |
760 |
0.25 |
2.7 |
LBS 30 |
273 |
538 |
19.3 |
33.8 |
203 |
1270 |
0.44 |
3.8 |
LBS 40 |
599 |
1140 |
31.9 |
53.4 |
387 |
2640 |
1.0 |
6.8 |
LBS 50 |
1100 |
1940 |
46.6 |
73.0 |
594 |
4050 |
1.7 |
10.6 |
LBS 70 |
2190 |
3800 |
66.4 |
102 |
895 |
6530 |
3.1 |
21.3 |
LBS 85 |
3620 |
6360 |
90.5 |
141 |
2000 |
12600 |
5.5 |
32.0 |
LBS 100 |
5910 |
12600 |
126 |
237 |
3460 |
20600 |
9.5 |
45.0 | |
|
