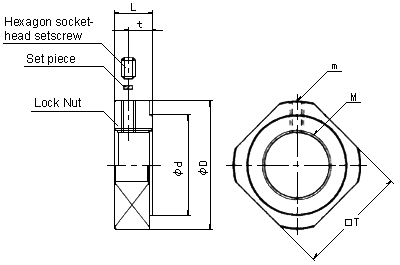

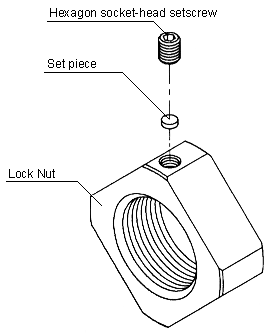

Construction of the Lock-Nut
Model No.
M
m
D
d
L
t
T
RN 4
M4×0.5
M2.6
11.5
8
5
2.7
10
RN 5
M5×0.5
13.5
9
11
RN 6
M6×0.75
M3×0.5
14.5
12
RN 8
M8×1
17
13
6.5
4
14
RN 10
M10×1
20
15
5.5
16
RN 12
M12×1
22
19
RN 15
M15×1
25
21
4.5
RN 17
M17×1
M4×0.7
30
24
RN 20
M20×1
35
26
7
RN 25
M25×1.5
M5×0.8
43
33
RN 30
M30×1.5
M6
48
39
40
RN 35
M35×1.5
M8
60
46
50
RN 40
M40×1.5
63
51
18
