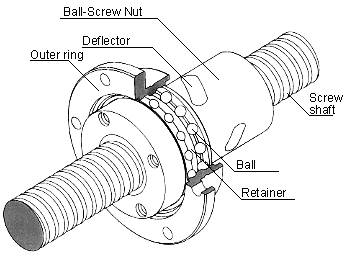

Construction of the
Standard-Lead Rotary-Nut Ball Screw Type DIR

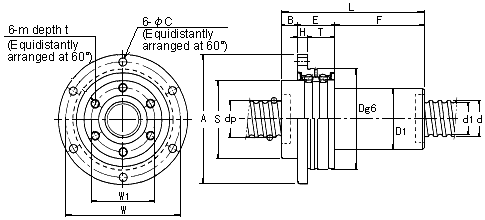

Unit : mm

1kN¡Ö102kgf

Model No.

Screw
shaft
OD
d

Lead

Basic
load rating

dp

Nut dimensions

Support bearing
Basic
load rating

Ca
kN

C0a
kN

OD
D

Flange
diameter
A

Overall
length
L

S

D1

B

E

F

T

W

W1

H

t

C

m

Ca
kN

C0a
kN

DIR1605-6

16

5

7.4

13.0

16.75

48

64

79

36

30

8

21

50

15

56

30

6

6

4.5

M4X0.7

8.7

10.5

DIR2005-6

20

5

8.5

17.3

20.75

56

72

80

43.5

34

9

21

50

15

64

36

6

8

4.5

M5X0.8

9.7

13.4

DIR2505-6

25

5

9.7

22.6

25.75

66

86

88

52

40

13

25

50

18

75

43

7

10

5.5

M6

12.7

18.2

DIR2510-4

10

9.0

18.0

26.0

66

86

106

52

40

11

25

70

18

75

43

7

10

5.5

M6

12.7

18.2

DIR3205-6

32

5

11.1

30.2

32.75

78

103

86

63

46

11

25

50

17

89

53

8

10

6.6

M6

13.6

22.3

DIR3206-6

6

14.9

37.1

33.0

78

103

97

63

48

11

25

61

17

89

53

8

10

6.6

M6

13.6

22.3

DIR3210-6

10

25.7

52.2

33.75

78

103

131

63

54

11

25

95

17

89

53

8

10

6.5

M6

13.6

22.3

DIR3610-6

36

10

28.8

63.8

37.75

92

122

151

72

58

14

33

104

23

105

61

10

12

9

M8

20.4

32.3

DIR4010-6

40

10

29.8

69.3

41.75

100

130

142

79.5

62

14

33

95

23

113

67

10

12

9

M8

21.5

36.8

DIR4012-6

12

30.6

72.3

41.75

100

130

167

79.5

62

14

33

120

23

113

67

10

12

9

M8

21.5

36.8
