¢ºLM GUIDE SSRÇü  Caged BallTM Radial Type



Type SSR-XW

Type SSR-XV

Type SSR-XTB

Low-profile, compact, and strong against radial loads Modification of type SSR-XW with shortened LM blocks, resulting in a reduction in the space required for installation LM blocks can be attached to a table from below, when through holes cannot be drilled in the table.

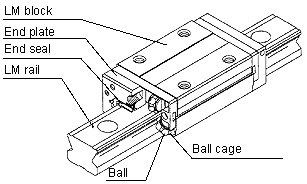

Construction of Model SSR-XW



          Balls roll in four rows of precision-ground raceway on an LM rail and an LM block.
          The end plate attached to the ball cage and LM block causes the trains of balls to circulate.
          The Caged BallTM design developed by THK eliminates wear caused by friction between balls, or
          ball wear, thus improving the grease service life, enabling an extended maintenance-free period,
          achieving low noise and an acceptable running sound, and significantly increasing high-speed performance.
