¢ºLM GUIDE- SR Types and Features


Type SR-W

Type SR-V



Low-profile, compact, and strong against radial loads. One of the representative models of the LM Guide. Type SR-W modified by shortening the LM blocks;
therefore space-saving

Type SR-TB

Type SR-SB



Of the same height as type SR-W. The LM blocks can be attached to a table from below Type SR-TB modified by shortening the LM blocks;
therefore space-saving

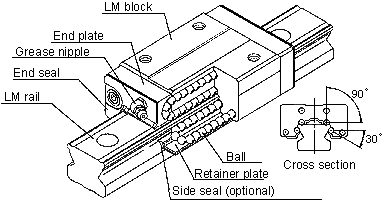

Construction of Model SR-W



        Balls roll in four rows of a precisely-ground raceway on an LM rail and an LM block.
        The end plate attached to the LM block causes the trains of balls to circulate.
        As the balls are held in place by the retainer plate, they do not fall off if the LM block is removed from the rail.
        The low profile of the assembly and the high rigidity of the LM block combine to provide stable linear motion
        with a high degree of accuracy.
