¢ºLM GUIDE- SNR , SNS  Caged Balltm High-Rigidity Types


For heavy loads

Types SNR-R/SNS-R

Types SNR-C/SNS-C

Compact type

Flange type



The LM block of Type SNR-R has the smallest width in this series and is provided with tapped holes. It is therefore suitable for the places where space for the table is limited. The flange of the LM block is provided with tapped holes, which is suitable for simple build-up assembly.
For mounting from below to a table that does not allow drilling a through hole, the flange tapped holes can be used as plain through holes.

For ultra-heavy loads

Types SNR-LR/SNS-LR

Types SNR-LC/SNS-LC

Compact type

Flange type



While it has the same cross-sectional shape as type SNR-R, this ultra-heavy-load type is provided with extra load-bearing balls to increase its load rating. While it has the same cross-sectional shape as type SNR-C, this ultra-heavy-load type is provided with extra load-bearing balls to increase its load rating.

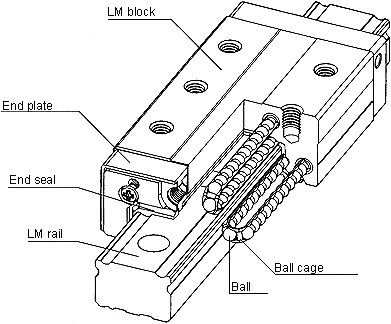

 SNR·SNSÇüÀÇ ±¸Á¶

      Balls roll in four rows of precision-ground raceway on an LM rail and an LM block.
      The end plate attached to the ball cage and LM block causes the trains of balls to circulate.
      The Caged Ball
      TM design developed by THK eliminates wear caused by friction between balls, or ball wear, thus improving
      the grease service life, enabling an extended maintenance-free period, achieving low noise and an acceptable running sound,
      and significantly increasing high-speed performance.



Model No.

SNR ·SNS 25

SNR ·SNS 30

SNR ·SNS 35

SNR ·SNS 45

SNR ·SNS 55

SNR ·SNS 65

LM rail
Standard
length
(L
0)

230
270
350
390
470
510
590
630
710
750
830
950
990
1070
1110
1190
1230
1310
1350
1430
1470
1550
1590
1710
1830
1950
2070
2190
2310
2430
2470

280
360
440
520
600
680
760
840
920
1000
1080
1160
1240
1320
1400
1480
1560
1640
1720
1800
1880
1960
2040
2200
2360
2520
2680
2840
3000

280
360
440
520
600
680
760
840
920
1000
1080
1160
1240
1320
1400
1480
1560
1640
1720
1800
1880
1960
2040
2200
2360
2520
2680
2840
3000

570
675
780
885
990
1095
1200
1305
1410
1515
1620
1725
1830
1935
2040
2145
2250
2355
2460
2565
2670
2775
2880
2985
3090

780
900
1020
1140
1260
1380
1500
1620
1740
1860
1980
2100
2220
2340
2460
2580
2700
2820
2940
3060

1270
1570
2020
2620
