¢ºLM GUIDE- SHS   Caged BallTM Four-Way Equal-Load Type


Standard Heavy-Load Types

Type SHS-C

Type SHS-V



The flange of the LM block is provided with tapped holes, which is suitable for simple build-up assembly. The SM block of Type SHS-V has a small width and is provided with tapped holes, which makes it suitable for simple build-up assembly. It is therefore suitable for places where space for the table is limited.

Type SHS-R






The SM block of Type SHS-V has a small width and is provided with tapped holes, wihch makes it suitable for simple build-up assembly. The height is the same as that of type HSR-R.



Standard Ultra-Heavy-Load Types

Type SHS-LC

Type SHS-LV

While it has the same cross-sectional shape as type SHS-C, this ultra-heavy-load type is provided with extra load-bearing balls to increase its load rating. While it has the same cross-sectional shape as type SHS-V, this ultra-heavy-load type is provided with extra load-bearing balls to increase its load rating.

Type SHS-LR





While it has the same cross-sectional shape as type SHS-R, this ultra-heavy-load type is provided with extra load-bearing balls to increase its load rating.

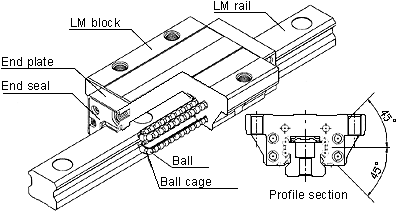

Construction of Model SHS Type



        Balls roll in four rows of precision-ground raceway on an LM rail and an LM block.
        The end plate attached to the ball cage and LM block causes the trains of balls to circulate.
        The four trains of balls are arranged so that the contact angle is
        45(, allowing each train of balls to bear an equal load rating in all four directions: radial, reverse-radial,
        and two lateral directions. This type can therefore be used in any installation direction.
        Moreover, SHS permits the application of a well-balanced preload, making it possible to increase rigidity
        in the four directions while keeping the friction coefficient at a given low level.
        The low-profile design and the use of a high-rigidity LM block combine to provide stable linear motion
        with high accuracy

    Type-SHS LM-Rail Standard and Maximum Lengths (mm)

Model No.

SHS 15

SHS 20

SHS 25

SHS 30

SHS 35

SHS 45

SHS 55

SHS 65

LM rail
standard
length
(L
0)

160
220
280
340
400
460
520
580
640
700
760
820
940
1000
1060
1120
1180
1240
1360
1480
1600

220
280
340
400
460
520
580
640
700
760
820
940
1000
1060
1120
1180
1240
1360
1480
1600
1720
1840
1960
2080
2200

220
280
340
400
460
520
580
640
700
760
820
940
1000
1060
1120
1180
1240
1300
1360
1420
1480
1540
1600
1720
1840
1960
2080
2200
2320
2440

280
360
440
520
600
680
760
840
920
1000
1080
1160
1240
1320
1400
1480
1560
1640
1720
1800
1880
1960
2040
2200
2360
2520
2680
2840
3000

280
360
440
520
600
680
760
840
920
1000
1080
1160
1240
1320
1400
1480
1560
1640
1720
1800
1880
1960
2040
2200
2360
2520
2680
2840
3000

570
675
780
885
990
1095
1200
1305
1410
1515
1620
1725
1830
1935
2040
2145
2250
2355
2460
2565
2670
2775
2880
2985
3090

780
900
1020
1140
1260
1380
1500
1620
1740
1860
1980
2100
2220
2340
2460
2580
2700
2820
2940
3060

1270
1570
2020
2620
