SAMICK

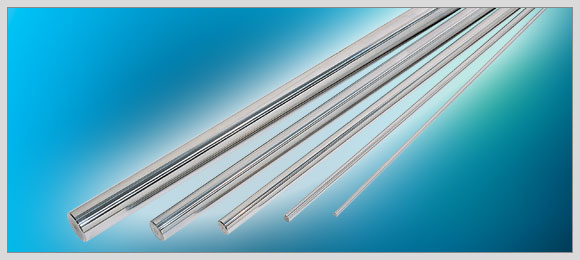

LM SHAFT & SHAFT SUPPORTS
|
SF Series |
|
SAMICK supplies precision LM shaft for SAMICK Linear Bushing. Because the balls are running directly on the shaft surface, the hardness, surface finishing, and tolerance of shaft should have care on production. SAMICK can supply high quality LM shaft with short delivery by stocking the standard dimensional LM shafts. |
|
|
|
|
|
SAMICK LM shaft can be

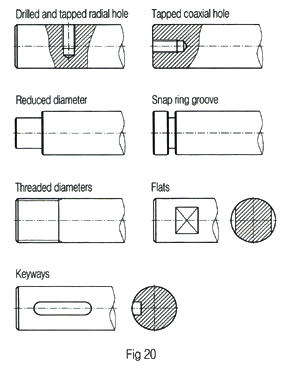

supplied either as solid or as holow shaft. Solid shaft are available in all dimensions required for SAMICK Linear Bushing and hollow shaft are available from diameter 12mm. SAMICK also supply specially machined shaft as shown in the Fig 20. The drilled and tapped hole on LM shaft for mounting on the Support Rail is available. |
|
|
|
|
|
|
|
|
|
|
|
|
|

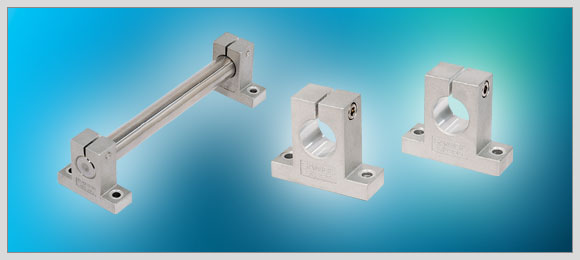

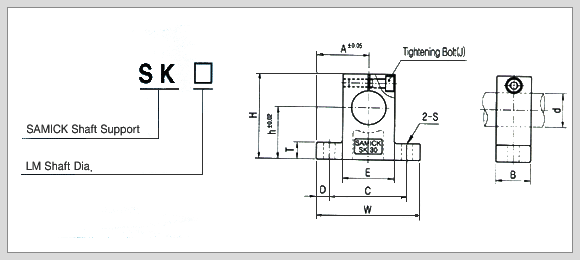

Shaft Supports: SK Series |
|
Support for Shaft ends. SAMICK Shaft Support is
made of Aluminium with compact design, and able to fix the LM Sfaft by slotting on axial direction and with fixing bolt |
|
|
|
|
|
