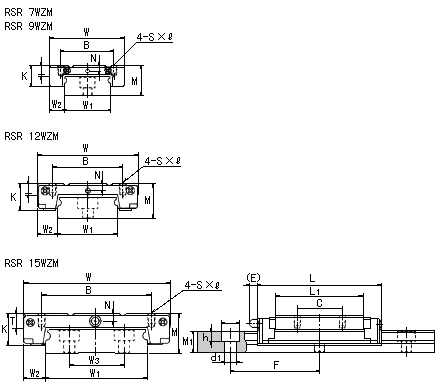

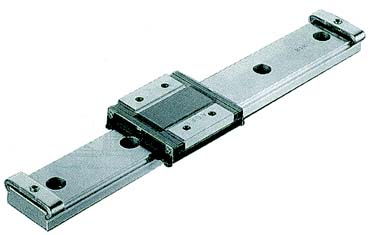

¢º LM GUIDE: RSR-WZMÇü








ȣĪ Çü¹ø

¿ÜÇü Ä¡¼ö mm

LMºí·Ï Ä¡¼ö mm

³ôÀÌ
M

Æø
W

±æÀÌ
L

B

C

L1

T

K

N

E

±¸¸®½º ´ÏÇÃ
(±â¸§±¸¸Û)

RSR 7 WZM

9

25

31.5

19

10

M3×2.8

19.7

4.0

7.0

1.8

-

¥õ1.6µå¸±±¸¸Û

RSR 9 WZM

12

30

39

21

12

M3×2.8

27

4.5

9.1

2.3

-

¥õ1.6µå¸±±¸¸Û

RSR 12 WZM

14

40

44.5

28

15

M3×3.6

29.3

4.8

10.6

3

-

¥õ2µå¸±±¸¸Û

RSR 15 WZM

16

60

55.5

45

20

M4×4.5

39.3

5.7

12.6

3

3.6

¶§·Á¹ÚÀ½´ÏÇÃ
PB107

          ¡Ø °¢ ¸ðµ¨ÀÇ Ä³µåµµ¸éÀ» ´Ù¿î·Îµå ¹ÞÀ¸½Ç¼ö ÀÖ½À´Ï´Ù



ȣĪ Çü¹ø

LM·¹ÀÏ Ä¡¼ö mm

±âº»Á¤°ÝÇÏÁß

Áú·®

W1

W2

W3

M1

F

d1×d2×h

C
kN

C0
kN

LMºí·Ï
kg

LM·¹ÀÏ
kg/m

RSR 7 WZM

14

 0
-0.05

5.5

-

5.2

30

3.5×6×3.2

1.37

2.16

0.018

0.51

RSR 9 WZM

18

 0
-0.05

6

-

7.5

30

3.5×6×4.5

2.45

3.92

0.030

1.08

RSR 12 WZM

24

 0
-0.05

8

-

8.5

40

4.5×8×4.5

4.02

6.08

0.060

1.5

RSR 15 WZM

42

 0
-0.05

9

23

9.5

40

4.5×8×4.5

6.66

9.80

0.135

3.0



RSR-Z/RSR-WZÇü LM·¹ÀÏ Ç¥ÁØ ±æÀÌ

ȣĪ Çü¹ø

RSR 7 Z

RSR 9 Z

RSR 12 Z

RSR 15 Z

RSR 7 WZ

RSR 9 WZ

RSR 12 WZ

RSR 15 WZ

LM·¹ÀÏ
Ç¥ÁØ ±æÀÌ
(L
0)

40
55
70
85
100
130

55
75
95
115
135
155
175
195
275
375

70
95
120
145
170
195
220
245
270
320
370
470
570

70
110
150
190
230
270
310
350
390
430
470
550
670
870

50
80
110
140
170
200
260
290

50
80
110
140
170
200
260
290
320

70
110
150
190
230
270
310
390
470
550

110
150
190
230
270
310
430
550
670
790
