▶LM GUIDE- RSR / RSR-W  Types and Features

Types RSR,RSR-K,V

Type RSR-W,WV



Standard type of Miniature LM Guide. Type RSR-V modified by increasing both the length and width of the LM block in order to achieve greater load ratings and permissible moments.

Type RSR-N

Type RSR-WN



Type RSR-V modified by increasing both the length and width of the LM block in order to achieve greater load ratings and permissible moments. Type RSR-W modified by increasing the LM-block length, number of effective balls, and load rating; features the highest load-carrying capability of any Miniature LM Guide model.

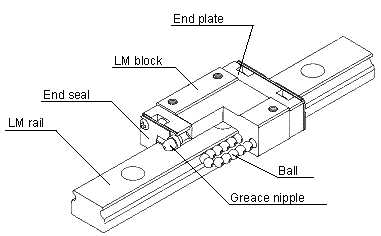

Construction of Model RSR-V


            Balls roll in two rows of precision-ground raceways on an LM rail and an LM block.
          The end plates attached to the LM block cause the trains of balls to circulate.

          In types RSR and RSR-W, balls circulate in the compact body of the LM block.
          As a result, linear motion with an unlimited stroke length can be achieved.

          The LM block has been designed to be space-saving yet provide the required rigidity.
          When used in combination with large-diameter balls, the LM block can ensure high rigidity in all directions



Type-RSR/RSR-W LM-Rail Standard and Maximum Lengths

Model No.

RSR 5

RSR 7

RSR 9

RSR 12

RSR 15

RSR 20

RSR 3W

RSR 5W

RSR 7W

RSR 9W

RSR 12W

RSR 15W
LM-rail
standard
length

(L0)

40
55
70
100
130
160

40
55
70
85
100
130

55
75
95
115
135
155
175
195
275
375

70
95
120
145
170
195
220
245
270
320
370
470
570

70
110
150
190
230
270
310
350
390
430
470
550
670
870

220
280
340
460
640
880
1000

40
55
70

50
70
90
110
130
150
170

50
80
110
140
170
200
260
290

50
80
110
140
170
200
260
290
320

70
110
150
190
230
270
310
390
470
550

110
150
190
230
270
310
430
550
670
790
