▶LM GUIDE- RSH-M, RSH-Z/WZ (With Retaining Plate Type)


Type RSH-M



Miniature LM Guide with Retaining Plate
Type RSH

Type RSH-Z

Type RSH-WZ

Standard type of Miniature LM Guide. Type RSH-Z modified by increasing both the length and width of the LM block in order to achieve greater load ratings and permissible moments.

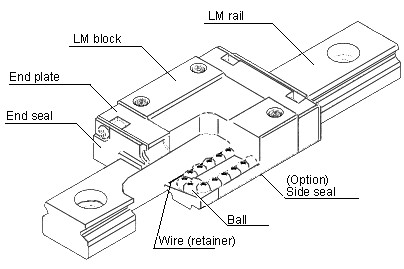

         Balls roll in two rows of precision-ground raceways on an LM rail and an LM block.
      The end plate attached to the LM block causes the trains of balls to circulate.
      As the balls are held in place by the retaining plate, they do not fall off if the LM rail is removed from the block.

      In type RSH, a Miniature LM Guide with a ball fall-off prevention mechanism,
      balls circulate in the compact body of the LM block, making it better suited for high-speed motion
      than other designs. Linear motion can therefore be achieved with no limitation on the stroke length.
      The LM block is designed so as to be space-saving yet provide the required rigidity.
      When used in combination with large-diameter balls, the LM block can ensure high rigidity in all directions.



Type-RSH LM-Rail Standard and Maximum Lengths

호칭 형번

RSH 7

RSH 9

RSH 12

LM-rail
standard
length
(L0)

40
55
70
85
100
130

55
75
95
115
135
155
175
195
275
375

70
95
120
145
170
195
220
245
270
320
370
470
570

Type-RSH-Z,WZ LM-Rail Standard and Maximum Lengths

호칭 형번

RSH 7Z

RSH 9Z

RSH 12Z

RSH 15Z

RSH 7WZ

RSH 9WZ

RSH 12WZ

RSH 15WZ

LM-rail
standard
length

(L0)

40
55
70
85
100
130

55
75
95
115
135
155
175
195
275
375

70
95
120
145
170
195
220
245
270
320
370
470
570

70
110
150
190
230
270
310
350
390
430
470
550
670
870

50
80
110
140
170
200
260
290

50
80
110
140
170
200
260
290
320

70
110
150
190
230
270
310
390
470
550

110
150
190
230
270
310
430
550
670
790
