¢ºLM Guide NSR - TBC (Self-aligning Type)

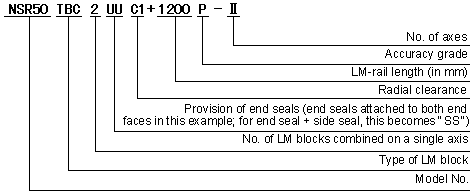

Model No.

External
dimensions

LM-block dimensions

LM-rail dimensions

Basic load rating

Mass

M

W

L

B

C

H

T

K

E

T1

N

grease
nipple


W
1
±0.05

W2

M1

F

d1×d2×h

C
kN

C0
kN

LM block
kg

LM rail
kg/m

NSR 20 TBC

40

70

67

55

50

6.6

8

34.5

7

5.5

8.5

A-M6F

23

23.5

23

60

6×9.5×8.5

9.41

18.6

0.62

3.1

NSR 25 TBC

50

90

78

72

60

9

10

43.5

7.5

6

8.5

A-M6F

28

31

28

80

7×11×9

14.9

26.7

1.13

4.7

NSR 30 TBC

60

100

90

82

72

9

12

51

9.5

8

8.5

A-M6F

34

33

34.5

80

7×11×9

22.5

38.3

1.8

7.2

NSR 40 TBC

75

120

110

100

80

11

13

64

12

10

8.5

A-M6F

45

37.5

44.5

105

9×14×12

37.1

62.2

3.5

12.2

NSR 50 TBC

82

140

123

116

95

14

15

74

15

9

15

A-PT1/8

48

46

47.5

120

11×17.5×14

55.1

87.4

5.2

14.3

NSR 70 TBC

105

175

150

150

110

14

18

95.5

16.5

10

15

A-PT1/8

63

56

62

150

14×20×17

90.8

152

9.4

27.6

        ¡Ø Download CAD Files




Type NSR-TBC LM-Rail Standard and Maximum Lengths

ȣĪ Çü¹ø

NSR 20

NSR 25

NSR 30

NSR 40

NSR 50

NSR 70

LM-rail
standard
length

(L
0)

220
280
340
460
640
820
1000
1240
1600

280
440
600
760
1000
1240
1640
2040
2520
3000

280
440
600
760
1000
1240
1640
2040
2520
3000

570
885
1200
1620
2040
2460
2985

780
1020
1260
1500
1980
2580
2940

1270
1570
2020
2620





Construction of Model NSR-TBC



                 Type NSR-TBC is the only model with the two-piece LM block in the LM Guide series.
            While all other types are built with one-piece LM blocks, NSR-TBC has a spline cylinder
            with a portion cut to 120° incorporated in a rigid casing made of cast iron.
            This makes possible self-aligning on the fitting surface with the casing and
            therefore permits even coarse installation.
