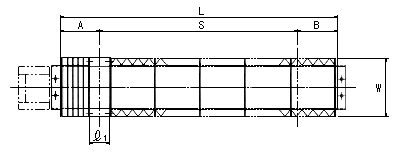

Unit : mm
|
Rail
length L |
Stroke
length S |
MIN/MAX |
Motor
side A |
Opposite
motor side B |
W |
1 |
KR 33 |
150 |
78.7 |
17/98.5 |
36 |
35.3 |
84 |
28.5 |
200 |
119.4 |
23/142.5 |
39.3 |
41.3 |
300 |
195.4 |
35/230.5 |
51.3 |
53.3 |
400 |
269.4 |
48/317.5 |
64.3 |
66.3 |
500 |
345.4 |
60/405.5 |
76.3 |
78.3 |
600 |
425.4 |
70/495.5 |
86.3 |
88.3 |
KR 46 |
340 |
205.4 |
34.5/240 |
67.3 |
67.3 |
110 |
43.5 |
440 |
279.4 |
47.5/327 |
80.3 |
80.3 |
540 |
355.4 |
59.5/415 |
92.3 |
92.3 |
640 |
439.4 |
67.5/507 |
100.3 |
100.3 |
740 |
509.4 |
82.5/592 |
115.3 |
115.3 |
940 |
675.4 |
99.5/775 |
132.3 |
132.3 | |
