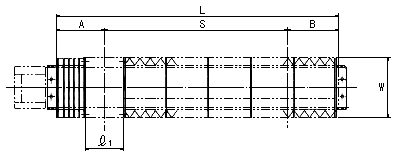

Unit : mm
|
|
Rail
length
L |
Stroke
length
S |
MIN/MAX |
Motor
side
A |
Opposite
motor side
B |
W |
 1
|
| KR 33 |
150 |
57 |
14/76 |
48 |
45 |
84 |
54 |
|
200 |
104 |
17/123 |
48 |
48 |
|
300 |
180 |
30/210 |
59 |
61 |
|
400 |
260 |
40/300 |
69 |
71 |
|
500 |
330 |
55/385 |
84 |
86 |
|
600 |
410 |
65/475 |
94 |
96 |
| KR 46 |
340 |
178 |
29.5/207.5 |
81 |
81 |
110 |
81 |
|
440 |
258 |
39.5/297.5 |
91 |
91 |
|
540 |
328 |
54.5/382.5 |
106 |
106 |
|
640 |
418 |
59.5/477.5 |
111 |
111 |
|
740 |
488 |
74.5/562.5 |
126 |
126 |
|
940 |
648 |
94.5/742.5 |
146 |
146 |
| KR 55 |
980 |
770 |
55.4/825.4 |
105 |
105 |
154 |
95.2 |
|
1080 |
856 |
62.4/918.4 |
112 |
112 |
|
1180 |
944 |
68.4/1012.4 |
118 |
118 |
|
1280 |
1030 |
75.4/1105.4 |
125 |
125 |
|
1380 |
1116 |
82.4/1198.4 |
132 |
132 |
| KR 65 |
980 |
746.5 |
58/804.5 |
115 |
118.5 |
184 |
110 |
|
1180 |
914.5 |
74/988.5 |
131 |
134.5 |
|
1380 |
1082.5 |
90/1172.5 |
147 |
150.5 |
|
1680 |
1334.5 |
114/1448.5 |
171 |
174.5 | |
