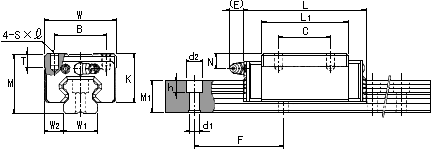

GUIDE HSR-R형 HSR-RM형
HSR-LR형
HSR-LRM형
|
|

|
|
|
| 호칭 형번 |
외형 치수 |
LM블록 치수 |
| 높이
M |
폭
W |
길이
L |
B |
C |
S× |
L1 |
T |
K |
N |
E |
윤활유
니플 |
| HSR 15 R
*HSR 15 RM |
28 |
34 |
56.6 |
26 |
26 |
M4×0.7×5 |
38.8 |
6 |
23.3 |
8.3 |
5.5 |
PB1021B |
| HSR 20 R
*HSR 20 RM |
30 |
44 |
74 |
32 |
36 |
M5×0.8×6 |
50.8 |
8 |
26 |
5 |
12 |
B-M6F |
| HSR 20 LR
*HSR 20 LRM |
30 |
44 |
90 |
32 |
50 |
M5×0.8×6 |
66.8 |
8 |
26 |
5 |
12 |
B-M6F |
| HSR 25 R
*HSR 25 RM |
40 |
48 |
83.5 |
35 |
35 |
M6×8 |
59.5 |
8 |
34.5 |
10 |
12 |
B-M6F |
| HSR 25 LR
*HSR 25 LRM |
40 |
48 |
102.5 |
35 |
50 |
M6×8 |
78.6 |
8 |
34.5 |
10 |
12 |
B-M6F |
| HSR 30 R
*HSR 30 RM |
45 |
60 |
98 |
40 |
40 |
M8×10 |
70.4 |
8 |
38 |
10 |
12 |
B-M6F |
| HSR 30 LR
*HSR 30 LRM |
45 |
60 |
121 |
40 |
60 |
M8×10 |
93 |
8 |
38 |
10 |
12 |
B-M6F |
| HSR 35 R
*HSR 35 RM |
55 |
70 |
109.5 |
50 |
50 |
M8×12 |
80.4 |
10 |
47.5 |
15 |
12 |
B-M6F |
| HSR 35 LR
*HSR 35 LRM |
55 |
70 |
135 |
50 |
72 |
M8×12 |
105.8 |
10 |
47.5 |
15 |
12 |
B-M6F |
| HSR 45 R
HSR 45 LR |
70 |
86 |
139
171 |
60 |
60
80 |
M10×17 |
98
129.8 |
15 |
60 |
20 |
16 |
B-PT1/8 |
| HSR 55 R
HSR 55 LR |
80 |
100 |
163
201 |
75 |
75
95 |
M12×18 |
118
156.1 |
18 |
67 |
21 |
16 |
B-PT1/8 |
| HSR 65 R
HSR 65 LR |
90 |
126 |
186
246 |
76 |
70
120 |
M16×20 |
147
206.5 |
23 |
76 |
19 |
16 |
B-PT1/8 |
| HSR 85 R
HSR 85 LR |
110 |
156 |
247
303 |
100 |
80
140 |
M18×25 |
178.6
236 |
30 |
94 |
23 |
16 |
B-PT1/8 | |
|
|
| 호칭 형번 |
LM레일 치수 |
기본정격하중 |
질량 |
| 폭
W1
±0.05 |
W2 |
높이
M1 |
피치
F |
d1×d2×h |
C
kN |
C0
kN |
LM블록
kg |
LM레일
kg/m |
| HSR 15 R
*HSR 15 RM |
15 |
9.5 |
15 |
60 |
4.5×7.5×5.3 |
8.33 |
13.5 |
0.18 |
1.5 |
| HSR 20 R
*HSR 20 RM |
20 |
12 |
18 |
60 |
6×9.5×8.5 |
13.8 |
23.8 |
0.25 |
2.3 |
| HSR 20 LR
*HSR 20 LRM |
20 |
12 |
18 |
60 |
6×9.5×8.5 |
21.3 |
31.8 |
0.35 |
2.3 |
| HSR 25 R
*HSR 25 RM |
23 |
12.5 |
22 |
60 |
7×11×9 |
19.9 |
34.4 |
0.54 |
3.3 |
| HSR 25 LR
*HSR 25 LRM |
23 |
12.5 |
22 |
60 |
7×11×9 |
27.2 |
45.9 |
0.67 |
3.3 |
| HSR 30 R
*HSR 30 RM |
28 |
16 |
26 |
80 |
9×14×12 |
28 |
46.8 |
0.9 |
4.8 |
| HSR 30 LR
*HSR 30 LRM |
28 |
16 |
26 |
80 |
9×14×12 |
37.3 |
62.5 |
1.1 |
4.8 |
| HSR 35 R
*HSR 35 RM |
34 |
18 |
29 |
80 |
9×14×12 |
37.3 |
61.1 |
1.5 |
6.6 |
| HSR 35 LR
*HSR 35 LRM |
34 |
18 |
29 |
80 |
9×14×12 |
50.2 |
81.5 |
2.0 |
6.6 |
| HSR 45 R
HSR 45 LR |
45 |
20.5 |
38 |
105 |
14×20×17 |
60
80.4 |
95.6
127 |
2.6
3.1 |
11.0 |
| HSR 55 R
HSR 55 LR |
53 |
23.5 |
44 |
120 |
16×23×20 |
88.5
119 |
137
183 |
4.3
5.4 |
15.1
|
| HSR 65 R
HSR 65 LR |
63 |
31.5 |
53 |
150 |
18×26×22 |
141
192 |
215
286 |
7.3
9.3 |
22.5 |
| HSR 85 R
HSR 85 LR |
85 |
35.5 |
65 |
180 |
24×35×28 |
210
282 |
310
412 |
13.0
16.0 |
35.2 | |
|
|
