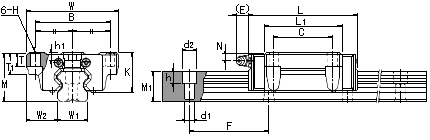

GUIDE HSR-CB형 HSR-CBM형
HSR-HB형
HSR-HBM형
|
|

|
|
|
| 호칭 형번 |
외형 치수 |
LM블록 치수 |
| 높이
M |
폭
W |
길이
L |
B |
C |
H |
h1 |
L1 |
T |
T1 |
K |
N |
E |
구리스
니플 |
| HSR 20 CB
*HSR 20 CBM |
30 |
63 |
74 |
53 |
40 |
6 |
4 |
50.8 |
10 |
10 |
26 |
5 |
12 |
B-M6F |
| HSR 20 HB
*HSR 20 HBM |
30 |
63 |
90 |
53 |
40 |
6 |
4 |
66.8 |
10 |
10 |
26 |
5 |
12 |
B-M6F |
| HSR 25 CB
*HSR 25 CBM |
36 |
70 |
83.5 |
57 |
45 |
7 |
4.5 |
59.5 |
10 |
16 |
30.5 |
6 |
12 |
B-M6F |
| HSR 25 HB
*HSR 25 HBM |
36 |
70 |
102.5 |
57 |
45 |
7 |
4.5 |
78.6 |
10 |
16 |
30.5 |
6 |
12 |
B-M6F |
| HSR 30 CB
*HSR 30 CBM |
42 |
90 |
98 |
72 |
52 |
9 |
4.5 |
70.4 |
10 |
18 |
35 |
7 |
12 |
B-M6F |
| HSR 30 HB
*HSR 30 HBM |
42 |
90 |
121 |
72 |
52 |
9 |
4.5 |
93 |
10 |
18 |
35 |
7 |
12 |
B-M6F |
| HSR 35 CB
*HSR 35 CBM |
48 |
100 |
109.5 |
82 |
62 |
9 |
6 |
80.4 |
13 |
21 |
40 |
8 |
12 |
B-M6F |
| HSR 35 HB
*HSR 35 HBM |
48 |
100 |
135 |
82 |
62 |
9 |
6 |
105.8 |
13 |
21 |
40 |
8 |
12 |
B-M6F |
| HSR 45 CB
HSR 45 HB |
60 |
120 |
139
171 |
100 |
80 |
11 |
7.5 |
98
129.8 |
15 |
25 |
50 |
10 |
16 |
B-PT1/8 |
| HSR 55 CB
HSR 55 HB |
70 |
140 |
163
201 |
116 |
95 |
14 |
8 |
118
156.1 |
17 |
29 |
57 |
11 |
16 |
B-PT1/8 |
| HSR 65 CB
HSR 65 HB |
90 |
170 |
186
246 |
142 |
110 |
16 |
15 |
147
206.5 |
23 |
37 |
76 |
19 |
16 |
B-PT1/8 |
| HSR 85 CB
HSR 85 HB |
110 |
215 |
247
303 |
185 |
140 |
18 |
23 |
178.6
236 |
30 |
55 |
94 |
23 |
16 |
B-PT1/8 | |
|
|
| 호칭 형번 |
LM레일 치수 |
기본정격하중 |
질량 |
| 폭
W1
±0.05 |
W2 |
높이
M1 |
피치
F |
d1×d2×h |
C
kN |
C0
kN |
LM블록
kg |
LM레일
kg/m |
| HSR 20 CB
*HSR 20 CBM |
20 |
21.5 |
18 |
60 |
6×9.5×8.5 |
13.8 |
23.8 |
0.35 |
2.3 |
| HSR 20 HB
*HSR 20 HBM |
20 |
21.5 |
18 |
60 |
6×9.5×8.5 |
21.3 |
31.8 |
0.47 |
2.3 |
| HSR 25 CB
*HSR 25 CBM |
23 |
23.5 |
22 |
60 |
7×11×9 |
19.9 |
34.4 |
0.59 |
3.3 |
| HSR 25 HB
*HSR 25 HBM |
23 |
23.5 |
22 |
60 |
7×11×9 |
27.2 |
45.9 |
0.75 |
3.3 |
| HSR 30 CB
*HSR 30 CBM |
28 |
31 |
26 |
80 |
9×14×12 |
28 |
46.8 |
1.1 |
4.8 |
| HSR 30 HB
*HSR 30 HBM |
28 |
31 |
26 |
80 |
9×14×12 |
37.3 |
62.5 |
1.3 |
4.8 |
| HSR 35 CB
*HSR 35 CBM |
34 |
33 |
29 |
80 |
9×14×12 |
37.3 |
61.1 |
1.6 |
6.6 |
| HSR 35 HB
*HSR 35 HBM |
34 |
33 |
29 |
80 |
9×14×12 |
50.2 |
81.5 |
2.0 |
6.6 |
| HSR 45 CB
HSR 45 HB |
45 |
37.5 |
38 |
105 |
14×20×17 |
60
80.4 |
95.6
127 |
2.8
3.3 |
11.0 |
| HSR 55 CB
HSR 55 HB |
53 |
43.5 |
44 |
120 |
16×23×20 |
88.5
119 |
137
183 |
4.5
5.7 |
15.1 |
| HSR 65 CB
HSR 65 HB |
63 |
53.5 |
53 |
150 |
18×26×22 |
141
192 |
215
286 |
8.5
10.7 |
22.5 |
| HSR 85 CB
HSR 85 HB |
85 |
65 |
65 |
180 |
24×35×28 |
210
282 |
310
412 |
17.0
23.0 |
35.2 | |
|
|
