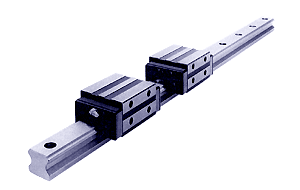

¢º LM GUIDE HSR-YRÇü





ȣĪ Çü¹ø

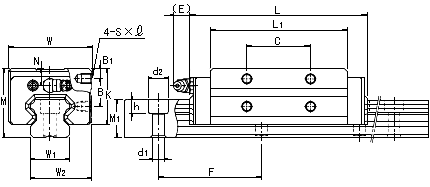

¿ÜÇü Ä¡¼ö

LMºí·Ï Ä¡¼ö

³ôÀÌ
M

Æø
W

±æÀÌ
L

B1

B

C

L1

K

N

E

±¸¸®½º
´ÏÇÃ

HSR 15 YR
*HSR 15 YRM

28

33.5

56.6

4.3

11.5

18

M4×0.7×5

38.8

23.3

8.3

5.5

PB1021B

HSR 20 YR
*HSR 20 YRM

30

43.5

74

4

11.5

25

M5×0.8×6

50.8

26

5

12

B-M6F

HSR 25 YR
*HSR 25 YRM

40

47.5

83.5

6

16

30

M6×6

59.5

34.5

10

12

B-M6F

HSR 30 YR
*HSR 30 YRM

45

59.5

98

8

16

40

M6×9

70.4

38

10

12

B-M6F

HSR 35 YR
*HSR 35 YRM

55

69.5

109.5

8

23

43

M8×10

80.4

47

15

12

B-M6F

HSR 45 YR

70

85.5

139

10

30

55

M10×14

98

60

20

16

B-PT1/8

HSR 55 YR

80

99.5

163

12

32

70

M12×15

118

67

21

16

B-PT1/8

HSR 65 YR

90

124.5

186

12

35

85

M16×22

147

76

19

16

B-PT1/8

         ¡Ø °¢ ¸ðµ¨ÀÇ Ä³µåµµ¸éÀ» ´Ù¿î·Îµå ¹ÞÀ¸½Ç¼ö ÀÖ½À´Ï´Ù

ȣĪ Çü¹ø

LM·¹ÀÏ Ä¡¼ö

±âº»Á¤°ÝÇÏÁß

Áú·®

Æø
W
1
±0.05

W2

³ôÀÌ
M
1

ÇÇÄ¡
F

d1×d2×h

C
kN

C0
kN

LMºí·Ï
kg

LM·¹ÀÏ
kg/m

HSR 15 YR
*HSR 15 YRM

15

24

15

60

4.5×7.5×5.3

8.33

13.5

0.18

1.5

HSR 20 YR
*HSR 20 YRM

20

31.5

18

60

6×9.5×8.5

13.8

23.8

0.25

2.3

HSR 25 YR
*HSR 25 YRM

23

35

22

60

7×11×9

19.9

34.4

0.54

3.3

HSR 30 YR
*HSR 30 YRM

28

43.5

26

80

9×14×12

28

46.8

0.9

4.8

HSR 35 YR
*HSR 35 YRM

34

51.5

29

80

9×14×12

37.3

61.1

1.5

6.6

HSR 45 YR

45

65

38

105

14×20×17

60

95.6

2.6

11.0

HSR 55 YR

53

76

44

120

16×23×20

88.5

137

4.3

15.1

HSR 65 YR

63

93

53

150

18×26×22

141

215

7.3

22.5
