Products : > Ball Screw > MR Ball Screw > DXF-A Series


Model
number 		Screw
diameter
d 		lead
I 		Ball
diameter
Da 		Root
diameter
dr 		Turn
x
Circuit 		Load rating
Ca /Coa
Kgf /Kgf		 Stiffen
Kg/um
DXF-1605A 16 5 3.175(1/8") 13.4 2.5x1(2-tube) 750/1400 32
DXF-2005A 20 5 3.175(1/8") 17.4 2.5x1(2-tube) 850/1740 39
DXF-2505A 25 5 3.175(1/8") 22.4 2.5x1(2-tube) 930/2240 47
DXF-2805A 28 5 3.175(1/8") 25.4 2.5x1(2-tube) 980/2500 50
DXF-2806A 6 3.969(5/32") 24.7 2.5x1(2-tube) 1310/3050 52
DXF-3205A 32 5 3.175(1/8") 29.4 2.5x1(2-tube) 1040/2870 57
DXF-3206A 6 3.969(5/32") 28.7 2.5x1(2-tube) 1400/3560 59
DXF-3606A 36 6 3.969(5/32") 32.7.1 2.5x1(2-tube) 1510/4050 64
DXF-3610A 10 6.350(1/4") 31.1 2.5x1(2-tube) 2760/6220 68
DXF-4010A 40 10 6.350(1/4") 35.1 2.5x1(2-tube) 2930/7040 74
DXF-4510A 45 10 6.350(1/4") 40.1 2.5x1(2-tube) 3120/8060 85
DXF-5010A 50 10 6.350(1/4") 45.1 2.5x1(2-tube) 3250/8930 90
Model

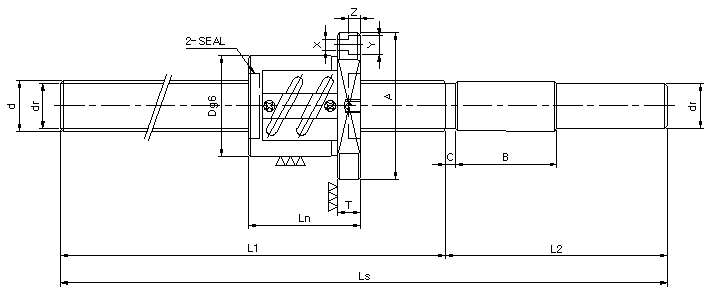

number 		Nut(Dimension) Screw shaft length
Body

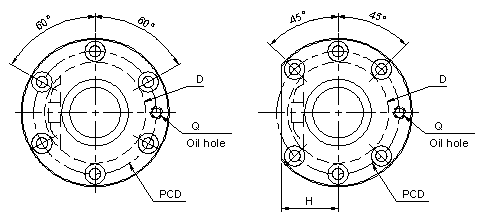

D		 Flange
A 		H Ln T PCD Set hole Q Ls L1(Ls-L2) L2 C B
X / Y / Z
DXF-1605A 40 60 23 56 10 50 4.5/8/4.5 M6 610.810.1010
 550.700.900
 80 5 30
DXF-2005A 44 67 26 55 11 55 5.5/9/5.5 M6 610.810.1010
 550.700.900 110 5 40
DXF-2505A 50 73 28 55 11 61 5.5/9/5.5 M6 610.810.1010
1210.1410 		480.680.880
1080.1280 		130 5 50
DXF-2805A 55 84 31 56 12 69 6.5/10.5/6.5 M6

610.810.1010
1210.1410

 480.680.880
1080.1280 		130 5 50
DXF-2806A 55 84 31 63 12 69 6.5/10.5/6.5 M6 610.810.1010
1210.1510 		480.680.880
1080.1280 		130 5 50
DXF-3205A 58 84 32 56 12 71 6.5/10.5/6.5 M6 610.810.1010
1210.15410 		450.650.850
1050.1350 		160 5 60
DXF-3206A 62 89 34 63 12 75 6.5/10.5/6.5 M6 810.1010.1210
1510.1810		 450.650.850
1050.1350 		160 5 60
DXF-3606A 65 99 38 67 15 82 9/14/8.5 M6 810.1010.1210
1510.1810		 630.830.1030
1330.1630		 180 50 70
DXF-3610A 75 119 45 100 18 98 11/17.5/11 M6 810.1510.1810
1510.1810		 630.830.1030
1330.1630		 180 10 70
DXF-4010A 82 124 47 100 18 102 11/17.5/11 1/8" 1210.1510.1810
2110.2410		 1030.1330.1630
1930.2230		 180 10 80
DXF-4510A 88 132 47 100 18 102 11/17.5/11 1/8" 1210.1510.1810
2110.2410		 1030.1330.1630
1930.2230		 180 10 80
DXF-5010A 93 135 51 100 18 113 11/17.5/11 1/8" 1210.1510.1810
2110.2410		 1010.1310.1610
1910.2210 		200 10 90
